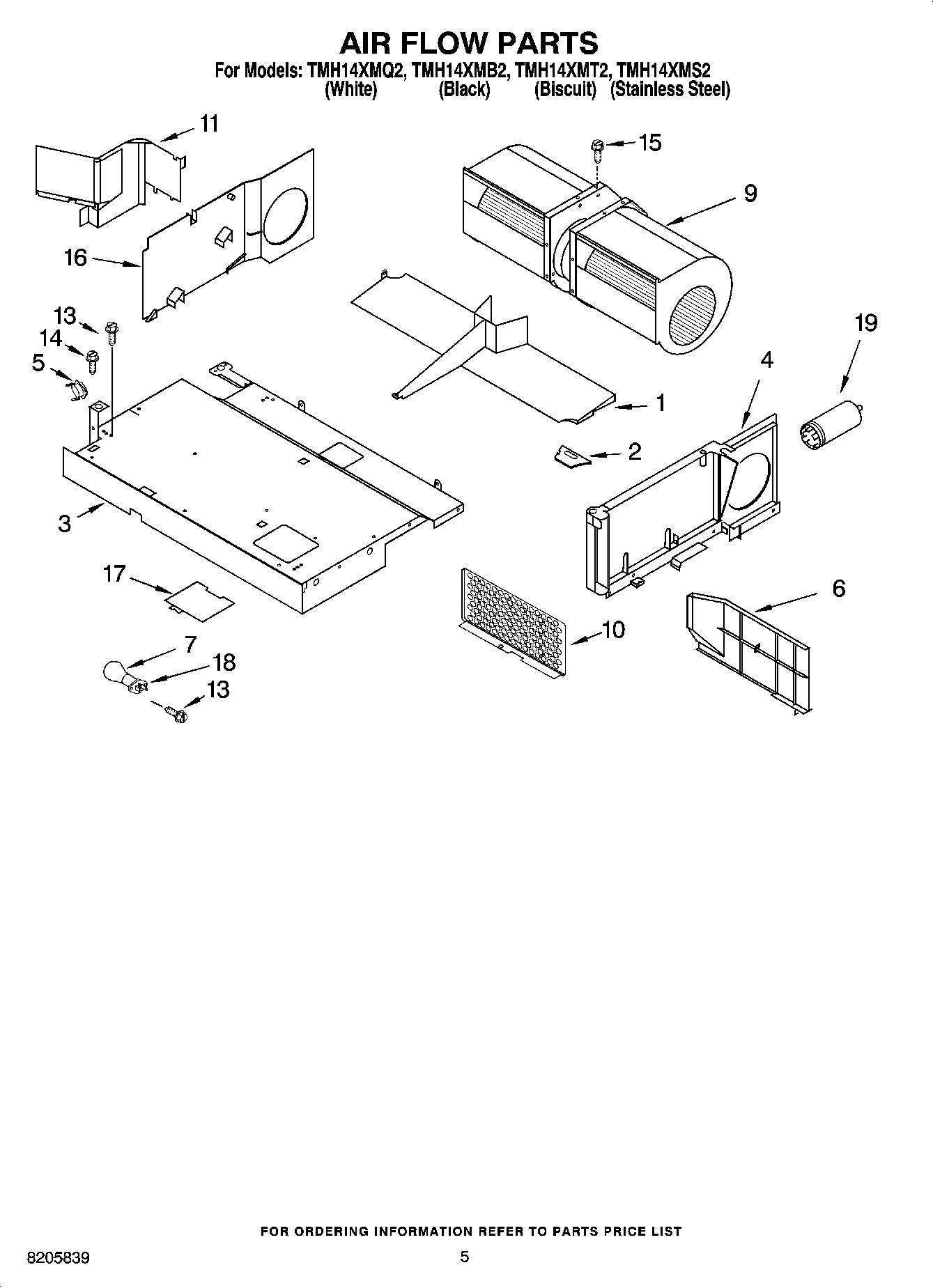

TMH14XMT2 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	Socket, Motor Wire
3	Base Plate (Includes 5)
4	Air Guide (Right)
5	Thermostat
6	Deflector, Cooling Air
7	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
9	Motor, Fan Assy
10	Shield
11	Air Guide, Sealing Plate
13	Screw
14	Screw
15	Screw
16	Air Guide (Left)
17	Cover, Light
18	8169539 Whirlpool Microwave Light Bulb Socket and Housing
19	Filter
