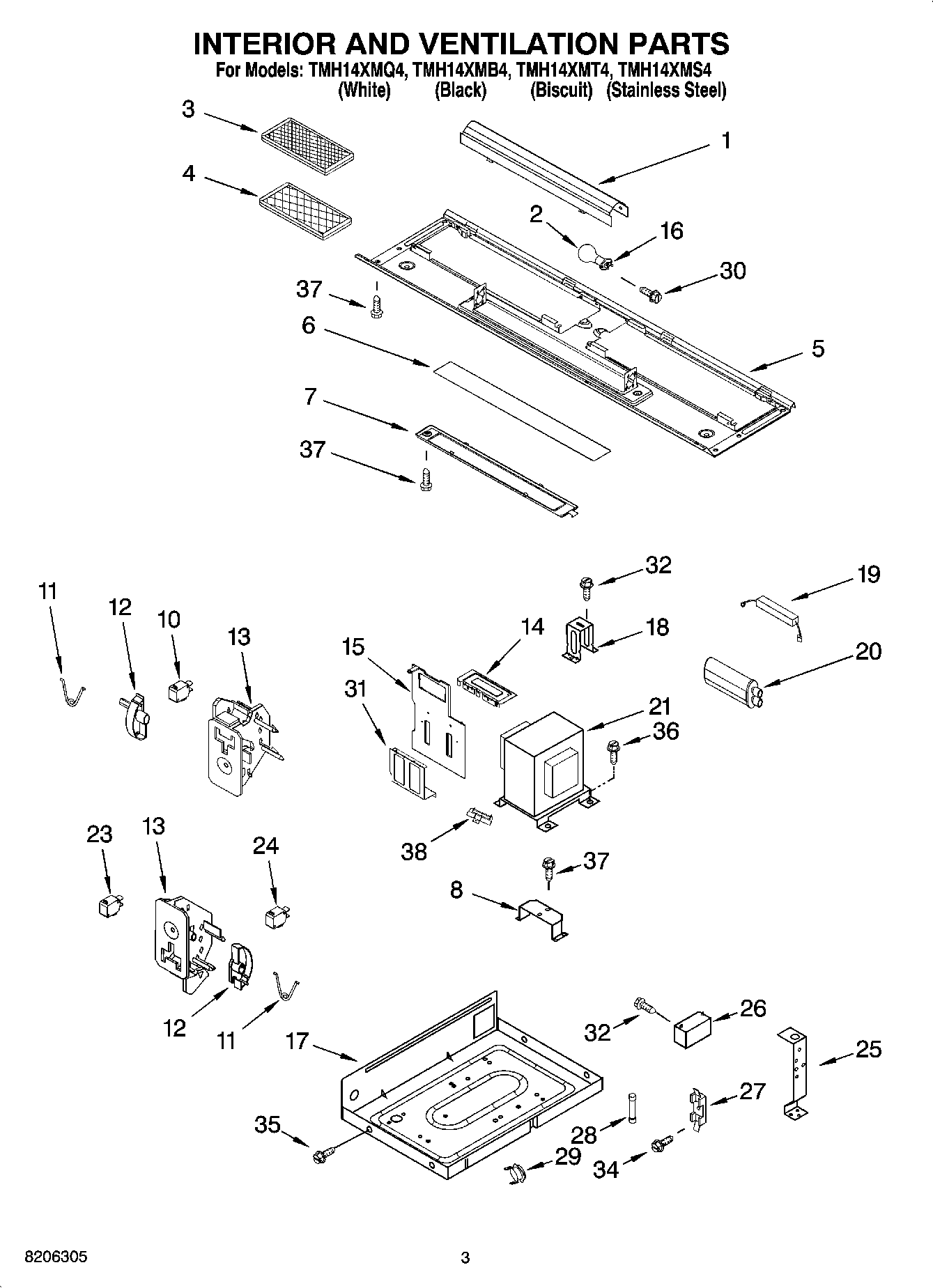

TMH14XMT4 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Reflector, Lamp
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	8206444A Whirlpool Microwave Charcoal Filter
4	6802A Whirlpool Grease Filter
5	Plate, Bottom
6	Glass, Lamp
7	Holder, Glass
8	TCO, Bracket Assembly
10	W10211972 Whirlpool Microwave Switch
11	Spring, Interlock
12	Plate, Cam
13	8205572 Whirlpool Microwave Interlock
14	Block, Transformer
15	Air Guide, Cooling
16	8169539 Whirlpool Microwave Light Bulb Socket and Housing
17	Chassis (Includes 29)
18	Holder, Capacitor
19	W11256462 Whirlpool Microwave Diode
20	CAPACTR-MG
21	Transformer, H.V.
23	W10269458 Whirlpool Microwave Door Switch
24	W10211974 Whirlpool Microwave Door Interlock Micro Switch
25	Bracket, Right
26	Motor, Capacitor
27	Holder, Fuse
28	FUSE-THRML
29	Thermostat
30	Screw
31	Air guide, Magnetron
32	W11380570 Whirlpool Microwave Screw
34	Screw
35	8169479 Whirlpool Microwave Screw
36	4393836 Whirlpool Microwave Screw
37	Screw
38	Resistor
