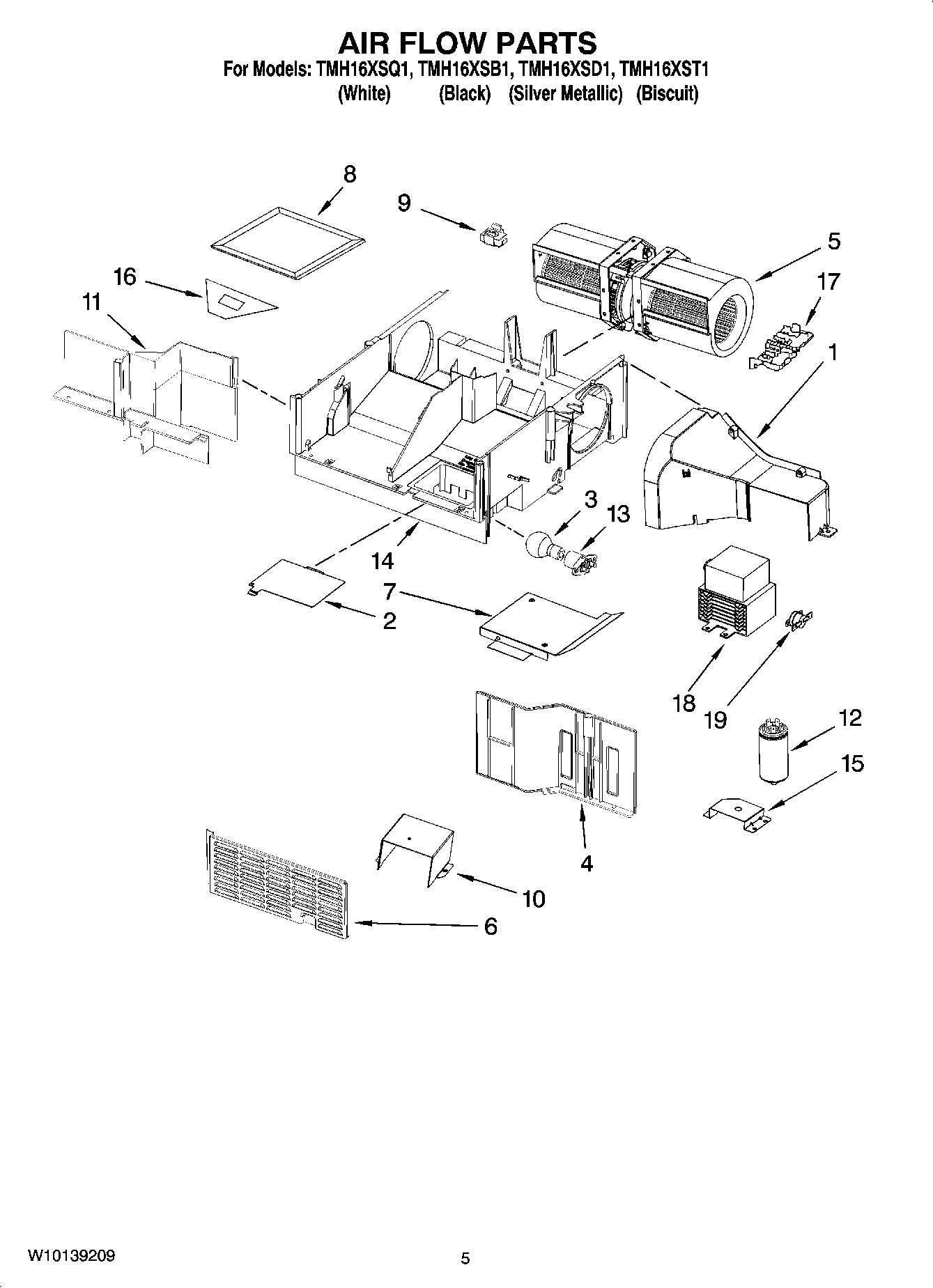

TMH16XSD1 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	Cover, Side Inlet
5	MOTOR, FAN ASSEMBLY
6	Shield
7	W10138797 Whirlpool Microwave Duct Cover
8	8206230A Whirlpool Microwave Charcoal Filter
9	W10596040 Whirlpool Microwave Nut
10	Channel, Air
11	AIR GUIDE
12	Filter
13	8169539 Whirlpool Microwave Light Bulb Socket and Housing
14	Base Plate, Air Guide
15	Brkt-Mntg, Filter
16	Socket, Motor Wire
17	Cover, Terminal
18	W10754299 Whirlpool Microwave Oven Magnetron
19	W10598693 Whirlpool Microwave Thermostat Fix
