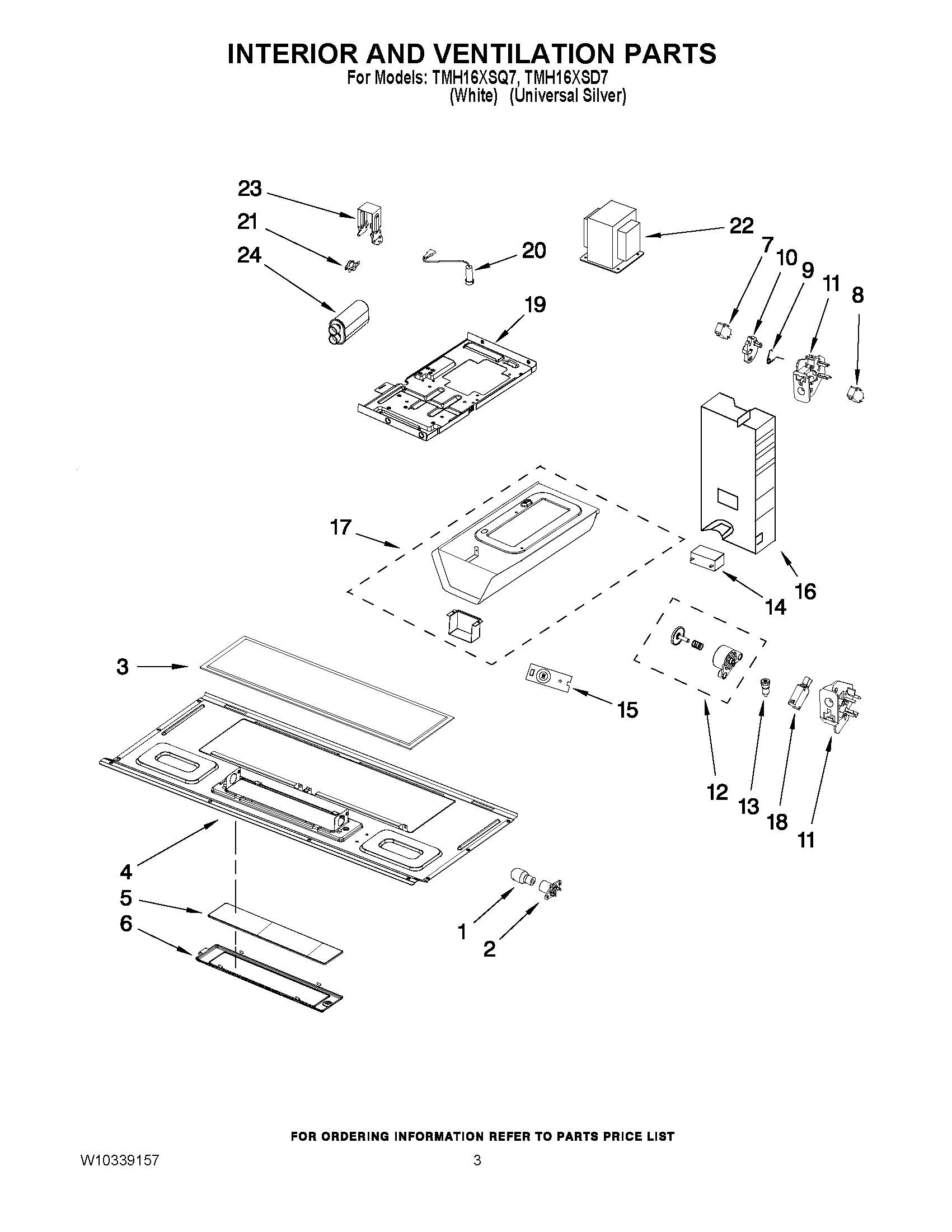

TMH16XSQ7 03 – INTERIOR AND VENTILATION PARTS

TMH16XSQ7 03 – INTERIOR AND VENTILATION PARTS

Written by

in

TMH16XSQ7 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
18206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
2W10210871 Whirlpool Microwave Lamp Housing
3W10208631A Whirlpool Microwave Grease Filter
4W10245196 Whirlpool Microwave Base
5WPW10210875 Whirlpool Microwave Lamp Glass Cover
6HOLDER, GLASS
7W10727360 Whirlpool Microwave Door Switch
8W10269458 Whirlpool Microwave Door Switch
9W10156812 Whirlpool Spring
10W10562613 Whirlpool Microwave Interlock Cam Assembly
11WPW10156813 Whirlpool Microwave Bottom Interlock Support
11WP8206419 Whirlpool Microwave Top Interlock Support
12W10197758 Whirlpool Microwave Piston
138206180 Whirlpool Microwave Screw
14W11405832 Whirlpool Microwave Capacitor
15W10163422 Whirlpool Microwave Thermistor
16SEPERATOR, SIDE WALL
17W10315759 Whirlpool Microwave Base
18W10269460 Whirlpool Microwave Door Switch
19W10269456 Whirlpool Microwave Base
20W11256462 Whirlpool Microwave Diode
21W10269232 Whirlpool Microwave Thermostat Fix
22Transformer, H.V.
23W10532063 Whirlpool Microwave Bracket
24CAPACTR-MG
