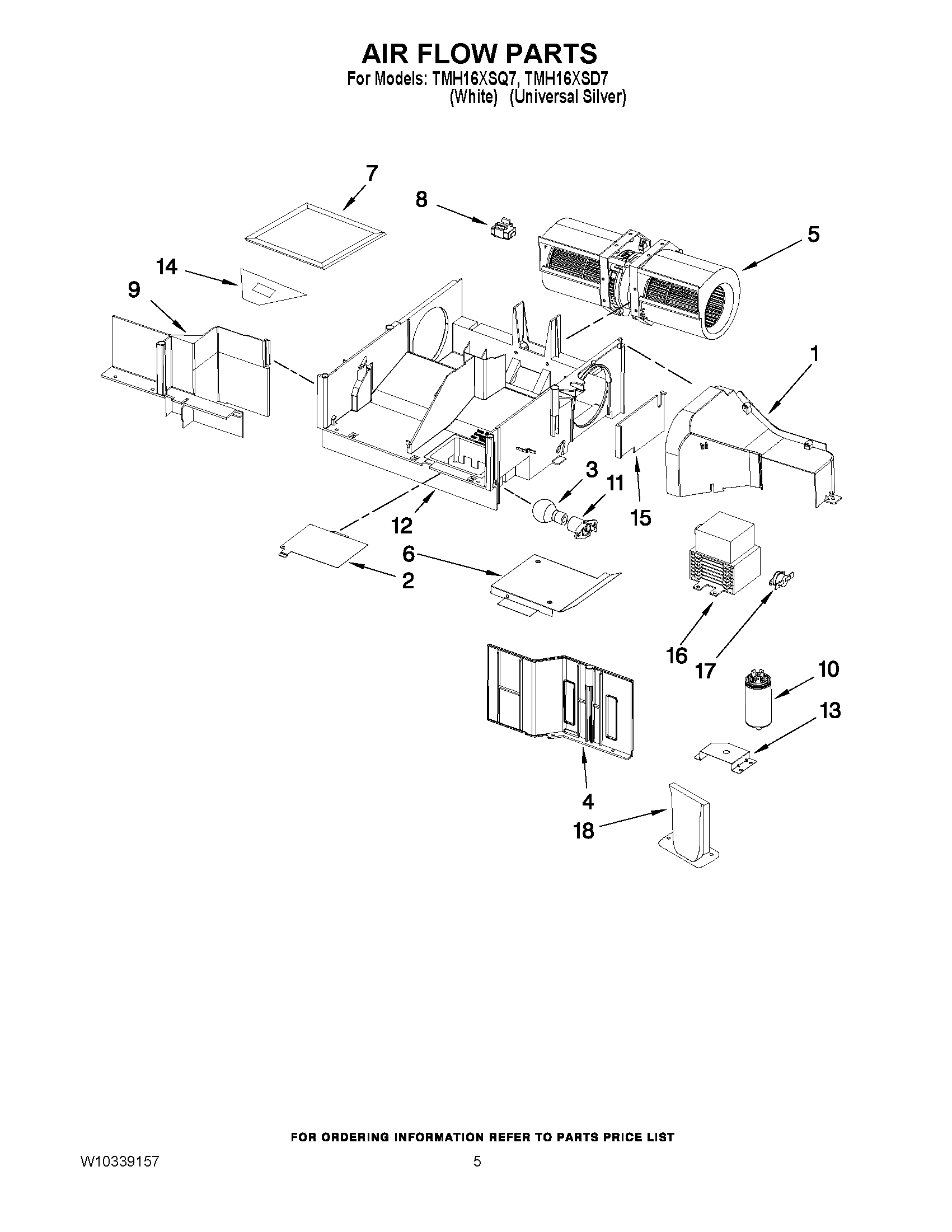

TMH16XSQ7 04 – AIR FLOW PARTS

TMH16XSQ7 04 – AIR FLOW PARTS

Written by

in

TMH16XSQ7 04 – AIR FLOW PARTS

Products

PositionProduct
1Deflector, Air
28206382 Whirlpool Microwave Light Cover
38206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4W10342991 Whirlpool Microwave Side Cover
5MOTOR, FAN ASSY
6W10138797 Whirlpool Microwave Duct Cover
78206230A Whirlpool Microwave Charcoal Filter
8W10596040 Whirlpool Microwave Nut
9AIR GUIDE
10W10422269 Whirlpool Microwave Filter
11WPW10210878 Whirlpool Microwave LMP Housing
12BASE PLATE, AIR GUIDE
13W10532064 Whirlpool Microwave Mounting Bracket
14SOCKET, MOTOR WIRE
15W10269469 Whirlpool Microwave Duct Cover
16W10754299 Whirlpool Microwave Oven Magnetron
17W10598693 Whirlpool Microwave Thermostat Fix
18W11381953 Whirlpool Microwave Plate
