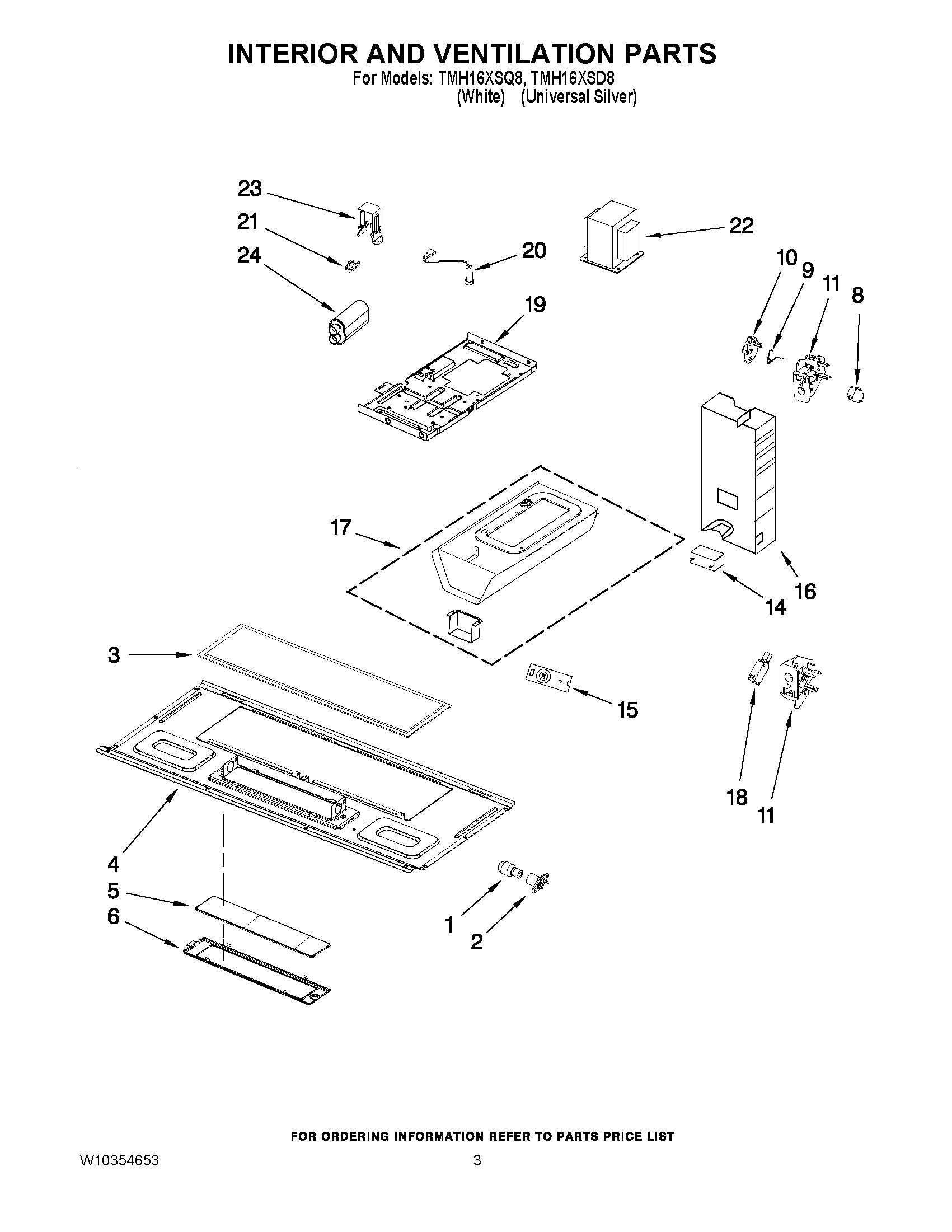

TMH16XSQ8 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
2	W10210871 Whirlpool Microwave Lamp Housing
3	W10208631A Whirlpool Microwave Grease Filter
4	W10245196 Whirlpool Microwave Base
5	WPW10210875 Whirlpool Microwave Lamp Glass Cover
6	HOLDER, GLASS
8	W10269458 Whirlpool Microwave Door Switch
9	W10156812 Whirlpool Spring
10	W10562613 Whirlpool Microwave Interlock Cam Assembly
11	WP8206419 Whirlpool Microwave Top Interlock Support
11	WPW10156813 Whirlpool Microwave Bottom Interlock Support
14	W11405832 Whirlpool Microwave Capacitor
15	W10163422 Whirlpool Microwave Thermistor
16	SEPERATOR, SIDE WALL
17	W10315759 Whirlpool Microwave Base
18	W10269460 Whirlpool Microwave Door Switch
19	W10269456 Whirlpool Microwave Base
20	W11256462 Whirlpool Microwave Diode
21	W10269232 Whirlpool Microwave Thermostat Fix
22	TRANSFORMER, HIGH VOLTAGE
23	W10532063 Whirlpool Microwave Bracket
24	CAPACTR-MG
