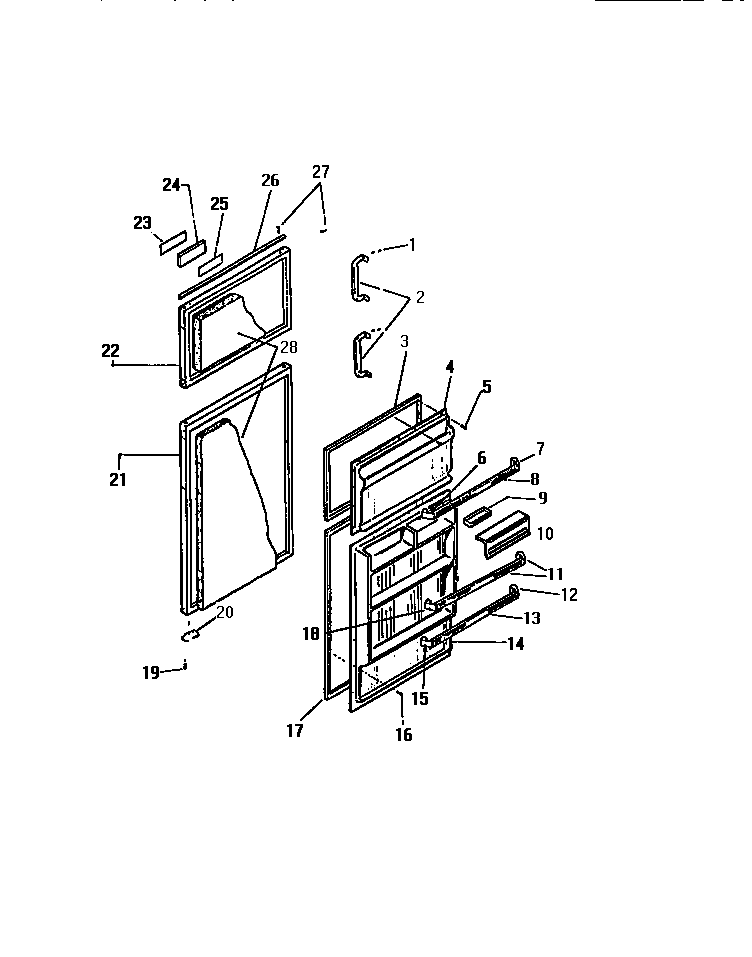

TMI210AN1V 02 – DOOR

Products

Position	Product
*33120	WCI G162991-29
*33132	COVER, TOP HINGE, AVOCADO
*33127	TRIM CORNER (4), AVOCADO
1	WCI G185566
2	HANDLE, DOOR PC & FC (2)
3	WCI G180547-14
4	WCI G185408-02
9	5308000716 Frigidaire Refrigerator Dish
10	WCI G178500-16
11	WCI G162939-35
12	SUPT, RACK, RH PC (2)
13	FRONT RACK PC
14	WCI G185409-02
15	SUPPORT LS (3)
16	5304455651 Frigidaire Refrigerator Screw
17	PC DOOR GASKET, MAGNETIC
18	SUPT, RACK, LH PC (2)
19	BEARING, HINGE (3)
20	STOP, DOOR. PC & FC (2)
21	WCI G179223-08
22	WCI G186123-08
23	WCI G178282-01
24	NAMEPLATE FRAME
25	WCI G162991-04
26	WCI G178293-01
27	SCREW, STOP MOUNTING (2)
28	WCI G89643
