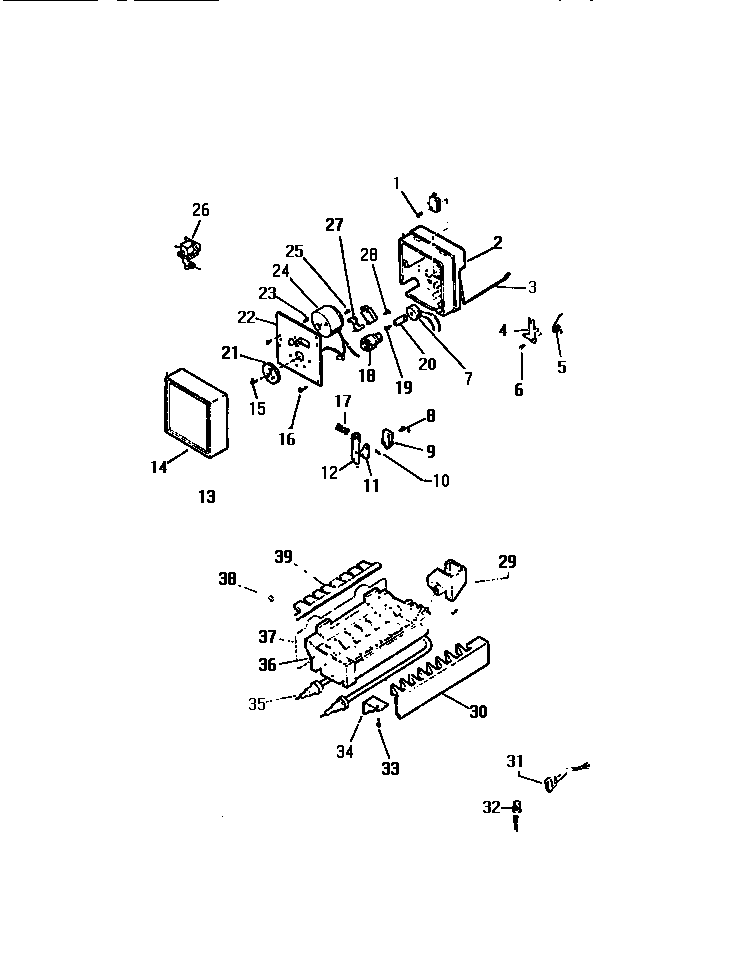

TMI210AN1V 06 – ICE MAKER

Products

Position	Product
1	WCI G137745
2	WCI G137748
3	ARM, SHUT OFF
4	5304456675 Frigidaire Refrigerator Lever Arm
5	WCI G137753
6	SCREW, SHOULDER
7	WCI G159907
8	SCREW 4, 40 X 3/4
9	WCI G137740
11	WCI G137739
12	WCI G159905
13	WCI G179244-01
14	WCI G159908
15	SCREW
16	WCI G164772
17	WCI G159909
18	WCI G137738
19	SCREW 8, 32 X 1
20	WCI G137742
21	5304469403 Frigidaire Gear
22	WCI G159904
24	WCI G137735
25	WCI G159898
26	WCI G158377
27	SPACER, HOLDING SWITCH
28	SCREW 4, 40 X 1
29	WCI G137760
30	STRIPPER-ICE
31	WIRE ASSEMBLY
32	WCI G159902
33	WCI G159900
34	WCI G159906
35	WCI G137756
36	MOLD AND HEATER ASSEMBLY (INCLUDES ILLUSTRATION 29)
37	SHIELD
38	WCI G164766
39	WCI G159911
