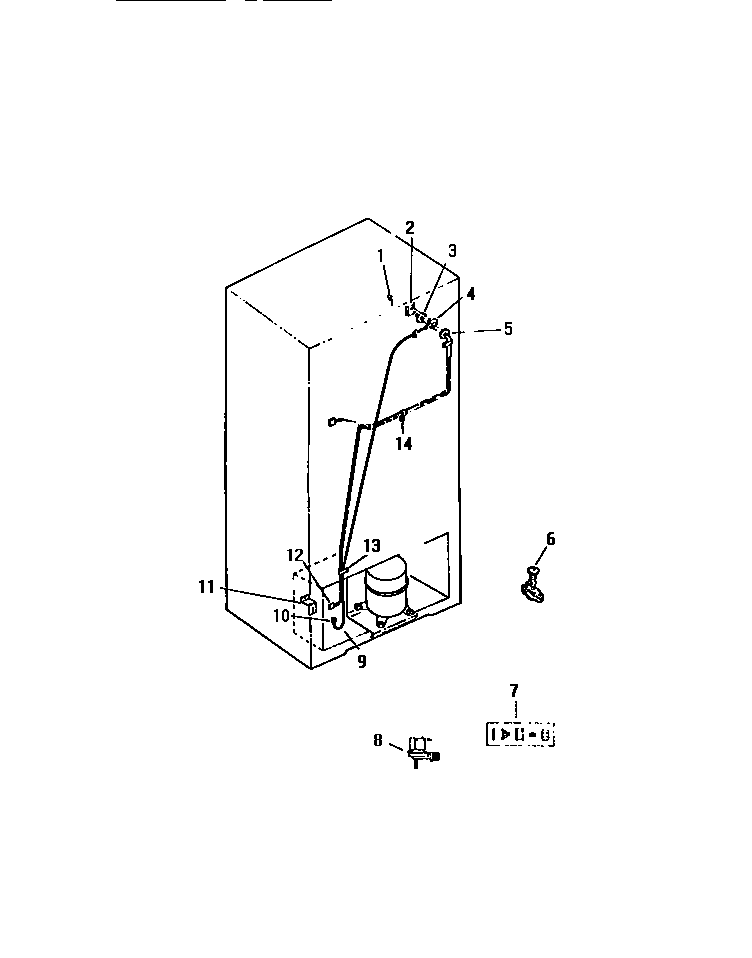

TMI210AN1V 07 – SYSTEM & AUTOMATIC DEFROST PARTS

Products

Position	Product
*33142	WCI G186122
*33150	BUTTON, PLUG, WATER INLET
*33163	WCI G162892-07
*33161	WCI G162977-08
*33151	WCI G141673
*33121	NUT, SPEED (2)
*33152	STRAP, MULLION MOUNTING
*33143	WCI G176588
*33156	WCI G172723-08
*33123	WCI G186196
*33139	WCI G176863
*33141	WCI G16320
*33122	TAPPING PLATE (2)
*33149	BUTTON, PLUG, ICE MAKER HARNESS
*33148	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
*33137	5308000039 Frigidaire Refrigerator Screw
*33138	5304455846 Frigidaire Refrigerator Clamp
*33145	5304455651 Frigidaire Refrigerator Screw
*33144	PLUG, EVAPORATOR INSULATION BLOCK, R H
*33140	SCREW, CHANNEL MOUNTING (3)
*33164	BUTTON, PLUG, DOOR TRIM (4)
*33146	WCI G164571
*33147	BUTTON, PLUG, LINER (2)
1	CLIP, HARNESS LOCATION
2	WCI G160347
3	WCI G171079
4	215456100 Frigidaire Refrigerator Water Inlet Tube
5	5303001147 Frigidaire Refrigerator Plug-Harness Hole
6	WCI G99428
7	WCI G159415
8	WCI G159377
9	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
10	NUT, INLET TO SOLENOID VALVE
11	BRACKET, VALVE TO REAR PANEL
12	WCI G185266
13	CLAMP-TUBE (NON-ILLUSTRATED)
14	5303001193 Frigidaire Refrigerator Clamp
