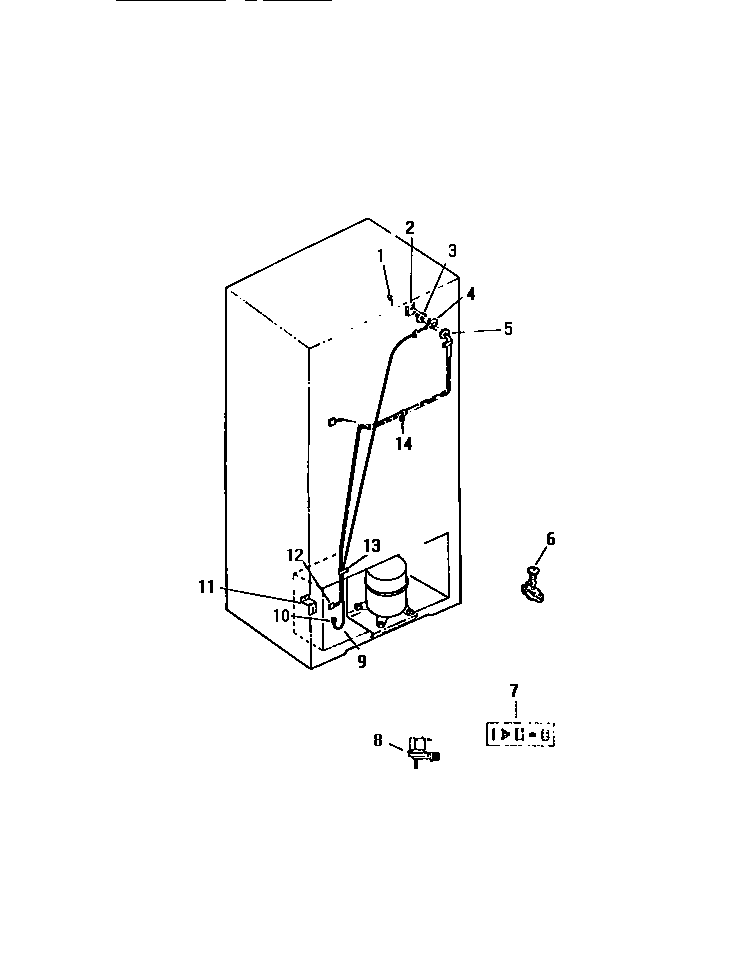

TMI210AN1W 07 – SYSTEM & AUTOMATIC DEFROST PARTS

Products

PositionProduct
*33162240494001 Frigidaire Refrigerator Plug Button
*33122TAPPING PLATE (2)
*33150BUTTON, PLUG, WATER INLET
*33163WCI G162892-07
*33151WCI G141673
*33121NUT, SPEED (2)
*33152STRAP, MULLION MOUNTING
*33143WCI G176588
*33157WCI G172723-01
*33123WCI G186196
*33139WCI G176863
*33141WCI G16320
*33149BUTTON, PLUG, ICE MAKER HARNESS
*33148BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
*33147BUTTON, PLUG, LINER (2)
*331385304455846 Frigidaire Refrigerator Clamp
*33142WCI G186122
*331375308000039 Frigidaire Refrigerator Screw
*331455304455651 Frigidaire Refrigerator Screw
*33144PLUG, EVAPORATOR INSULATION BLOCK, R H
*33164BUTTON, PLUG, DOOR TRIM (4)
*33146WCI G164571
*33140SCREW, CHANNEL MOUNTING (3)
1CLIP, HARNESS LOCATION
2WCI G160347
3WCI G171079
4215456100 Frigidaire Refrigerator Water Inlet Tube
55303001147 Frigidaire Refrigerator Plug-Harness Hole
6WCI G99428
7WCI G159415
8WCI G159377
95308010366 Frigidaire Refrigerator P1-Water Inlet Tube
10NUT, INLET TO SOLENOID VALVE
11BRACKET, VALVE TO REAR PANEL
12WCI G185266
13CLAMP-TUBE (NON-ILLUSTRATED)
145303001193 Frigidaire Refrigerator Clamp
