TMK160AN6D 04 – SHELVES AND SUPPORTS

TMK160AN6D 04 – SHELVES AND SUPPORTS

Written by

in

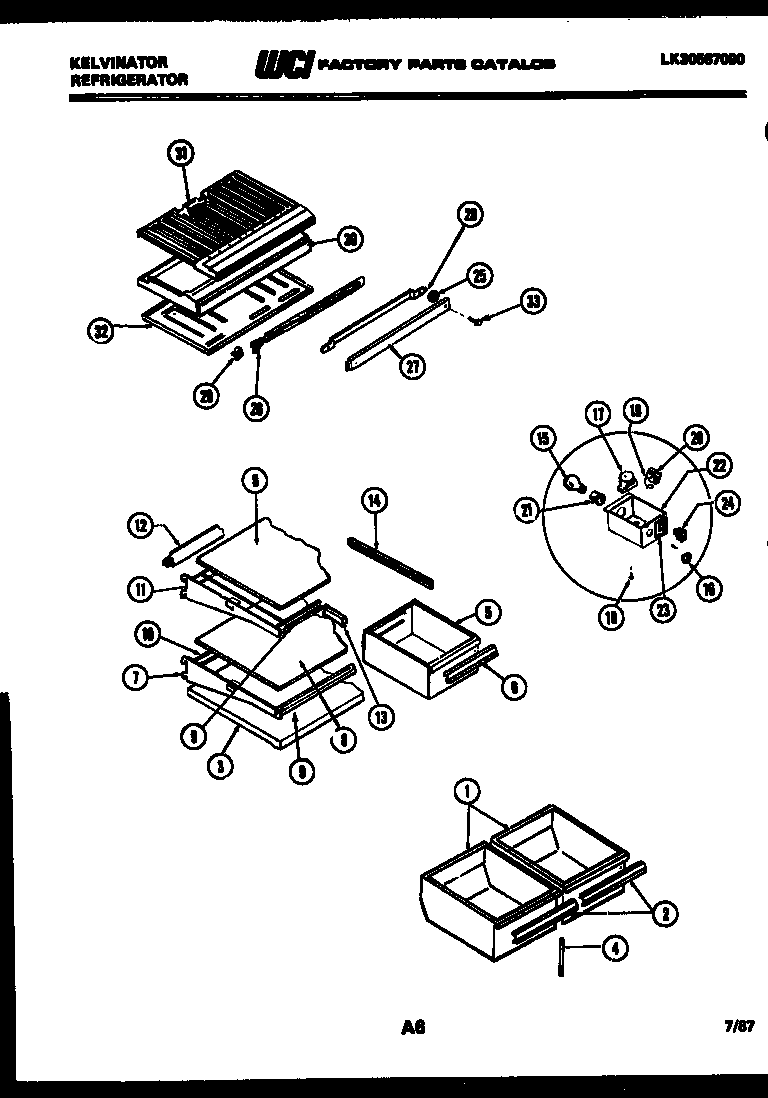

TMK160AN6D 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*77502SCREW (5)
*77507HARNESS, WIRING
1WCI G178303-01
2TRIM, CRISPER (2)
3COVER-CRISPER
4SUPPORT, CRISPER COVER
5WCI G177623-01
6TRIM, MEAT KEEPER
7FRAME, CANTILEVER SHELF (GLASS)
8SHELF, GLASS (HALF) (3)
9TRIM, SHELF FRONT (4)
10TRIM, SHELF, REAR (3) (REGULAR)
11WCI G187218-01
12TRIM, SHELF, REAR (MEAT KEEPER)
12ASCREW-HANGER (2) (NON-ILLUSTRATED)
13HANGAR, LEFT SIDE
14HANGAR, RIGHT SIDE
15316538904 Frigidaire Oven Lamp Light
16KNOB CONTROL
17215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
185304455649 Frigidaire Refrigerator Screw
19TUBE
20COLD CONTROL
20AWCI G107080
21SOCKET LIGHT
22WCI G174655-17
23WCI G178294-01
24SWITCH SLIDE
25SPACER, MULLION (2)
26WCI G187921
27WCI G490086-11
28CLAMP, MULLION MOUNTING
295309918806 Frigidaire Refrigerator Light Switch Door
30DIVIDER, CENTER
31BOTTOM, FC
32TOP PC
33SCREW, BRACKET MOUNTING (4)
