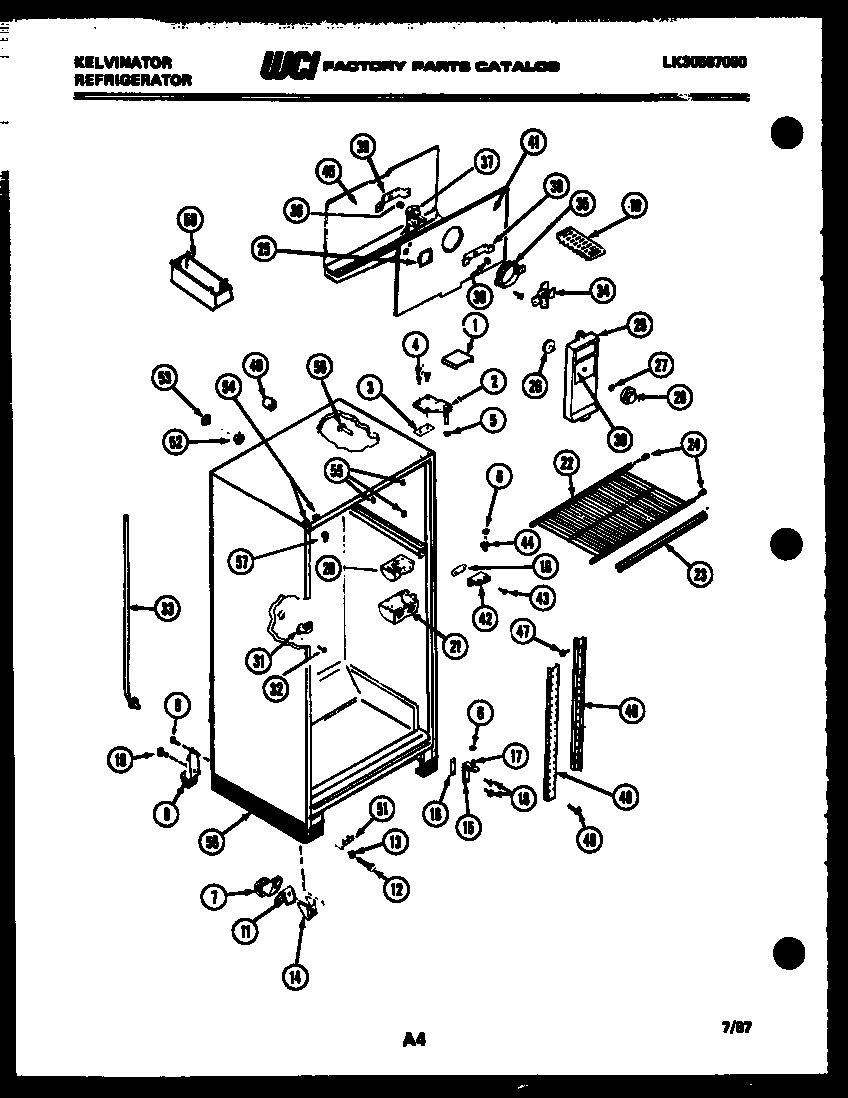

TMK160AN6V 03 – CABINET PARTS

Products

PositionProduct
*77223TAPPING PLATE (2)
*77228TAPPING, PLATE (2)
*77216BUTTON, PLUG, LINER (2)
*77257SPACER, FREEZER (2)
*77234BUTTON, LINER
1WCI G13558-08
2BRACKET, TOP HINGE
3WCI G183861
4241710601 Frigidaire Refrigerator Screw
5WCI G103903
6WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7ROLLER FRONT, ADJUSTABLE (2)
8WCI G183047
95308000039 Frigidaire Refrigerator Screw
10BOLT ROLLER (2)
11SPRING-ROLLER (2)
12BOLT-ROLLER (2)
13WASHER
14SUPPORT, ROLLER (2)
15BRACKET, HINGE, LOWER
16SHIM, HINGE
175303001321 Frigidaire Refrigerator Lower Hinge Pin
19215667501 Frigidaire Refrigerator Ice Tray Primary
20DEFLECTOR AIR
21WCI G162178
22WCI G177059-01
23TRIM, SHELF, FREEZER
24WCI G166495-01
25BUTTON DECORATIVE PLUG
26DAMPER FAN COVER
27NUT, DAMPER MOUNTING
28KNOB, DAMPER CONTROL
29WCI G163061-40
30LABEL, FAN COVER
30A5304455650 Frigidaire Refrigerator Screw
31SPOUT DRAIN TUBE
32PIN PUSH SPOUT (2)
33ARING, SEAL (NON-ILLUSTRATED)
33TUBE, DRAIN
345308000010 Frigidaire Refrigerator Evaporator Fan Blade
35RING, FAN ORIFICE
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
38WCI G185302
39WCI G185303
40TUBE, INSULATION (2)
41COVER-COIL
41ANUT, ORIFICE (2)
42AWASHER (2)
42WCI G173207
43SCREW, BRACKET MOUNTING (4)
44WCI G142220
45TROUGH-DRAIN
46CHANNEL, SHELF (2)
475304455852 Frigidaire Refrigerator Screw
48CHANNEL, CENTER SHELF, MOUNTING
49WCI G163989
50WCI G163669
51WCI G166912
52WCI G174733
53WCI G174734
54WCI G174747-08
555304509705 Frigidaire Refrigerator Grommet
555304500407 Frigidaire Refrigerator Shelf Mounting Grommet
56CABINET BASE
57TRIM CORNER (4), AVOCADO
58WCI G161015-10
