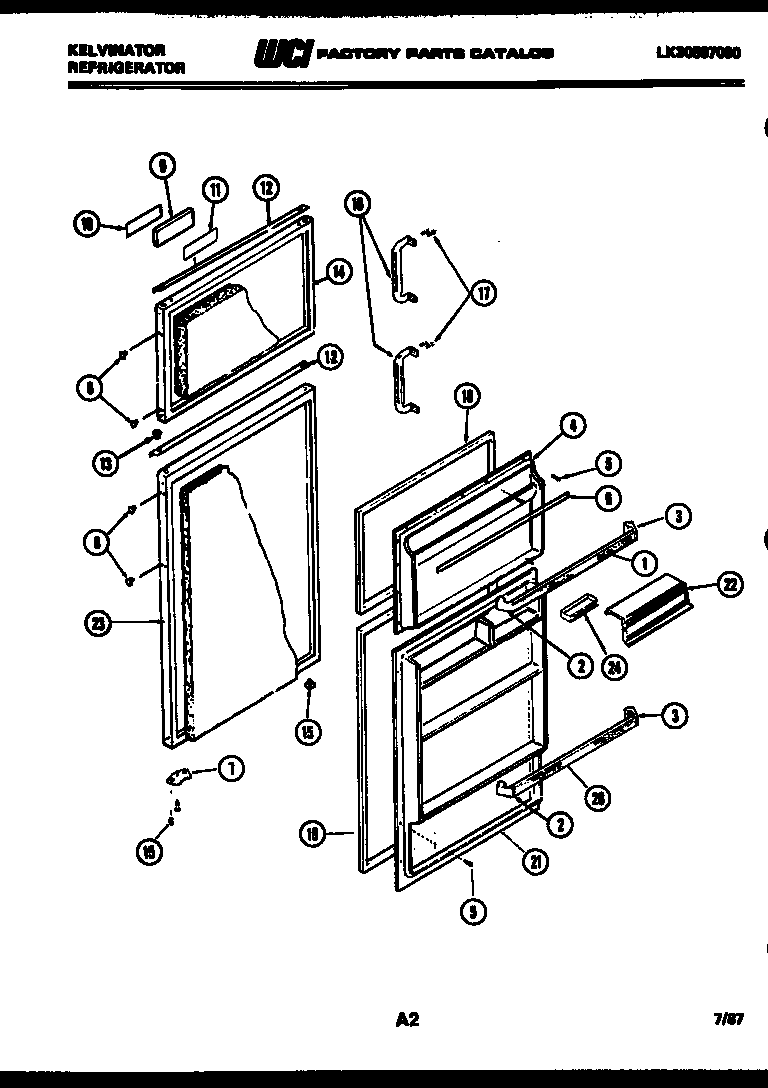

TMK160AN7F 02 – DOOR PARTS

Products

Position	Product
1	FRONT RACK, FC
2	SUPPORT LS (3)
3	SUPPORT RS (3)
4	PANEL-INNER FRZR
5	5304455651 Frigidaire Refrigerator Screw
6A	WCI G161624-24
6	TRIM, RACK
7	STOP, DOOR. PC & FC (2)
8	WCI G162977-10
9	NAMEPLATE FRAME
10	WCI G178282-01
11	WCI G162991-04
12A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
12	WCI G178293-02
13	WCI G162892-14
14	WCI G179091-10
15	BEARING, HINGE (3)
16	HANDLE, DOOR PC & FC (2)
17	WCI G185566
18	GASKET-FREEZER
19	218730603 Frigidaire Door Gasket
20	FRONT, RACK, PC
21	WCI G179083-01
22	WCI G179096-01
23	WCI G179101-10
24	5308000716 Frigidaire Refrigerator Dish
