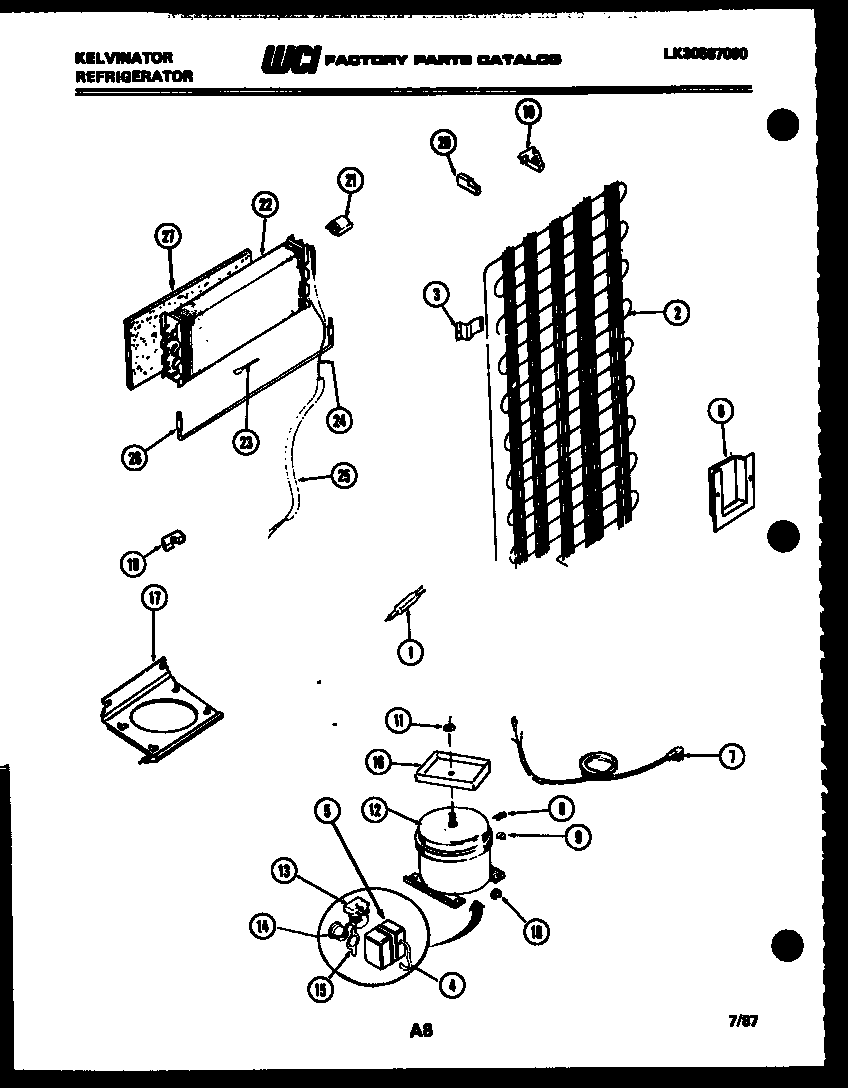

TMK160AN7V 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G178225
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI G183584
7CORD, SERVICE
8CLIP, COMPRESSOR MOUNTING (4)
9WASHER, COMPRESSOR MOUNTING (4)
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11NUT, LOCK
12COMPRESSOR WITH ELECTRICALS
13WCI G182225-11
14WCI G185810
15RETAINER, OVERLOAD
16DEFROST PAN & NUT
17PLATE
18BLOCK, LEFT SIDE
19BLOCK, EVAPORATOR, RH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22EVAPORATOR
23WCI G164546
24HEAT, EXCHANGE
25WCI G125963-68
26HEATER, DEFROST
27A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27DHOT TUBE REPAIR KIT
27CHARNESS-COMPRESSOR
27BWCI G167234
27INSULATOR
27EWCI G185229-09
30PLUG, EVAPORATOR INSULATION BLOCK, R H
