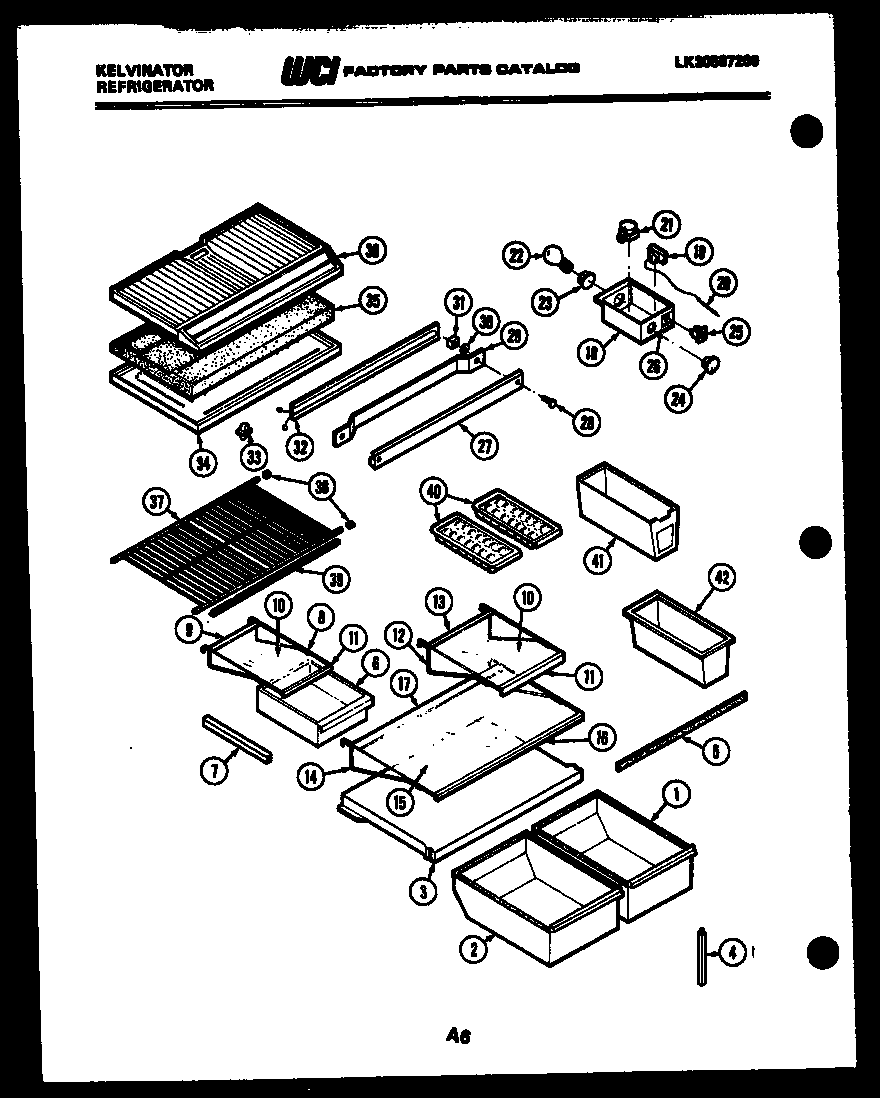

TMK160EN0F 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	PAN, CRISPER RS
2	PAN, CRISPER LS
3	WCI G490016-03
4	SUPPORT, CRISPER COVER
5	GASKET, COVER
6	WCI G177623-06
7A	HANGAR, RIGHT SIDE
7B	SCREW-HANGER (2) (NON-ILLUSTRATED)
7	HANGAR, LEFT SIDE
8	WCI G187218-01
10	WCI G171654-65
12	FRAME, CANTILEVER SHELF (GLASS)
13	TRIM, SHELF, REAR (3) (REGULAR)
14	WCI G171608-11
15	WCI 3015067
16A	CLIP, SHELF (8)
16	TRIM, FRONT
17	WCI G172436-17
18A	5304455650 Frigidaire Refrigerator Screw
18	WCI G176722-03
19	WCI G107080
19	CONTROL
20	TUBE
21	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
21	5304455649 Frigidaire Refrigerator Screw
22	316538904 Frigidaire Oven Lamp Light
23	SOCKET LIGHT
24	WCI G490102-02
25	SWITCH SLIDE
26	LABEL
27	WCI G490086-10
28	SCREW, BRACKET MOUNTING (4)
29	CLAMP, MULLION MOUNTING
30	WASHER (2)
31	SPACER, MULLION (2)
32	HTR, CENTER RAIL
33	5309918806 Frigidaire Refrigerator Light Switch Door
34A	SCREW (5)
34	TOP PC
35	DIVIDER, CENTER
36A	HARNESS, WIRING
36	BOTTOM, FC
37	WCI G177059-01
38	WCI G166495-01
39	TRIM, SHELF FRONT (4)
40	215667501 Frigidaire Refrigerator Ice Tray Primary
41	WCI G161015-17
42	WCI 3015068
