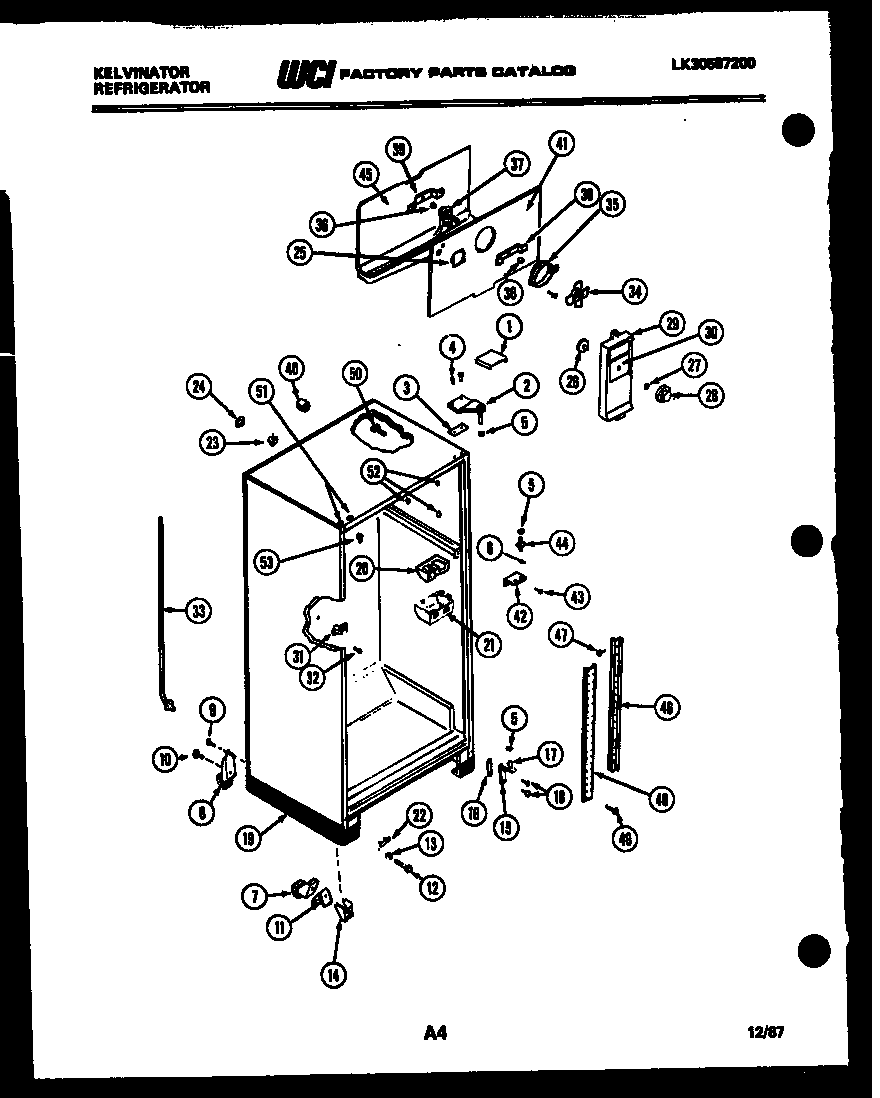

TMK160EN0V 03 – CABINET PARTS

TMK160EN0V 03 – CABINET PARTS

Written by

in

TMK160EN0V 03 – CABINET PARTS

Products

PositionProduct
*15062NUT, ANCHOR (2)
*15060BUTTON, PLUG, LINER (2)
*15062LEG-LEVELING (2)
*15060BUTTON, LINER
*15061TAPPING, PLATE (2)
1COVER, TOP HINGE, AVOCADO
2BRACKET, TOP HINGE
3WCI G183861
4241710601 Frigidaire Refrigerator Screw
5WCI G103903
6WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7ROLLER FRONT, ADJUSTABLE (2)
8ROLLER, REAR (2)
95304455651 Frigidaire Refrigerator Screw
10BOLT ROLLER (2)
11SPRING-ROLLER (2)
12BOLT-ROLLER (2)
13WASHER
14SUPPORT, ROLLER (2)
15BRACKET-HINGE
16SHIM, HINGE
175303001321 Frigidaire Refrigerator Lower Hinge Pin
19CABINET BASE
20DEFLECTOR AIR
21WCI G162178
22WCI G166912
23WCI G174733
24WCI G177734
25PLUG, DECORATIVE
26DAMPER FAN COVER
27NUT, DAMPER MOUNTING
28WCI G162747-22
29WCI G163061-76
29A5304455650 Frigidaire Refrigerator Screw
30WCI 3015118
31SPOUT DRAIN TUBE
32PIN PUSH SPOUT (2)
33TUBE, DRAIN
33ARING, SEAL (NON-ILLUSTRATED)
345308000010 Frigidaire Refrigerator Evaporator Fan Blade
35RING, FAN ORIFICE
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
38WCI G185302
39WCI G185303
40TUBE, INSULATION (2)
41ANUT, ORIFICE (2)
41COVER-COIL
42AWASHER (2)
42BRACKET, HINGE CENTER
43SCREW, BRACKET MOUNTING (4)
44WCI G142220
45TROUGH-DRAIN
46CHANNEL, SHELF (2)
475304455852 Frigidaire Refrigerator Screw
48WCI G189341
49SCREW (3) (NON-ILLUSTRATED)
50WCI G163669
51WCI G174747-08
525304509705 Frigidaire Refrigerator Grommet
52A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
53TRIM CORNER (4), AVOCADO
