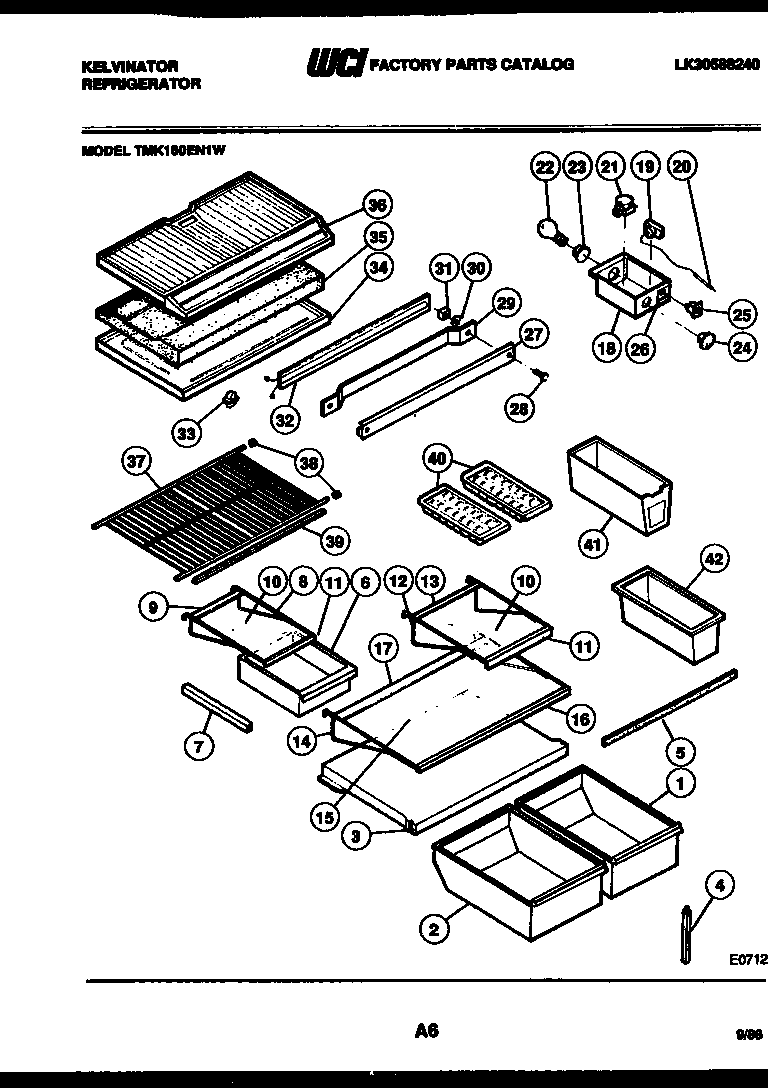

TMK160EN1T 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	PAN, CRISPER RS
2	PAN, CRISPER LS
3	WCI G490016-03
4	SUPPORT, CRISPER COVER
5	GASKET, COVER
6	WCI G177623-06
7A	HANGAR, RIGHT SIDE
7	HANGAR, LEFT SIDE
7B	SCREW-HANGER (2) (NON-ILLUSTRATED)
8	WCI G187218-01
9	TRIM, SHELF, REAR (MEAT KEEPER)
10	WCI G171654-65
11	TRIM, SHELF FRONT (4)
12	FRAME, CANTILEVER SHELF (GLASS)
13	TRIM, SHELF, REAR (3) (REGULAR)
14	WCI G171608-11
15	WCI 3015067
16	TRIM, FRONT
17	WCI G172436-17
18	WCI G176722-03
18A	5304455650 Frigidaire Refrigerator Screw
19A	WCI G107080
19	WCI 3200810
20	TUBE
21A	5304455649 Frigidaire Refrigerator Screw
21	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
22	316538904 Frigidaire Oven Lamp Light
23	SOCKET LIGHT
24	WCI G490102-02
25	SWITCH SLIDE
26	LABEL
27	WCI 3916132
28	SCREW, BRACKET MOUNTING (4)
29	CLAMP, MULLION MOUNTING
30	WASHER (2)
31	SPACER, MULLION (2)
32	HTR, CENTER RAIL
33	5309918806 Frigidaire Refrigerator Light Switch Door
34	TOP-REFRIGERATOR
34A	SCREW (5)
35	DIVIDER, CENTER
36	BOTTOM, FC
36A	HARNESS, WIRING
37	WCI G177059-01
38	WCI G166495-01
39	WCI 3200977
40	215667501 Frigidaire Refrigerator Ice Tray Primary
41	WCI G161015-17
42	WCI 3015068
