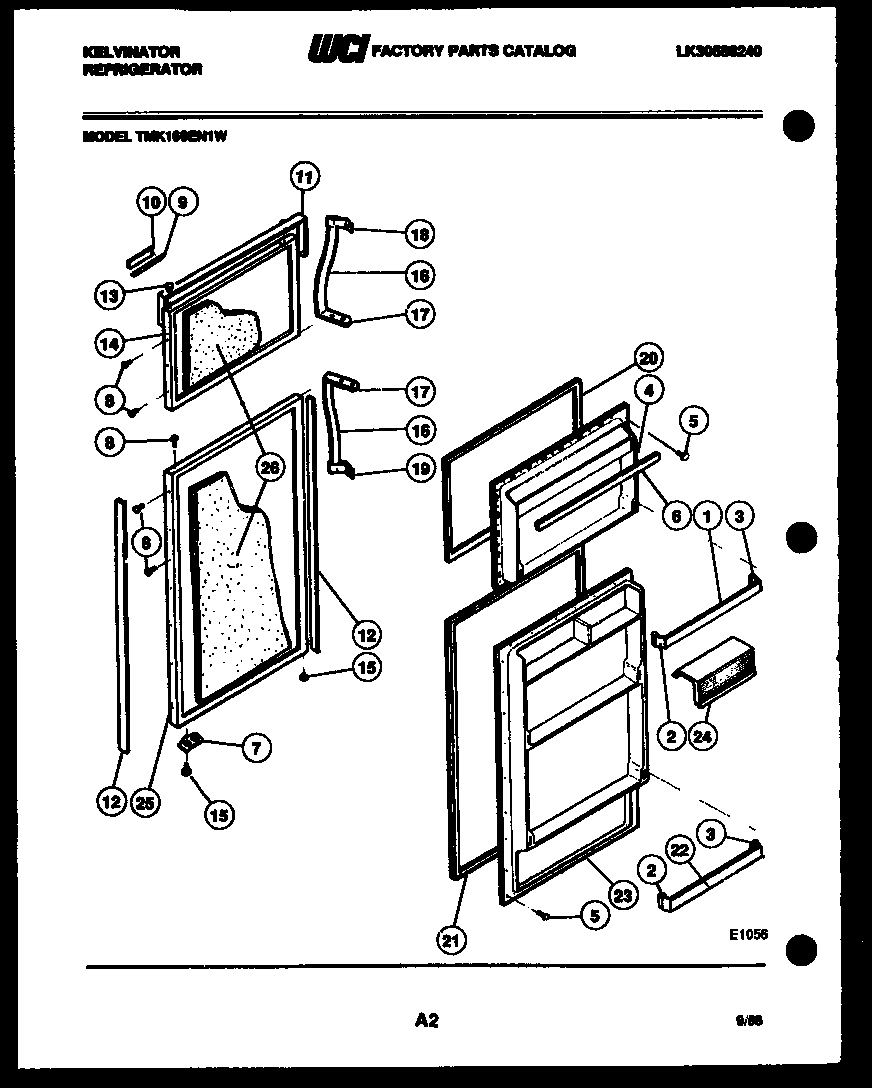

TMK160EN1V 02 – DOOR PARTS

Products

Position	Product
1	WCI G161019-76
2	SUPPORT LS (3)
3	SUPPORT RS (3)
4	INNER PANEL
5	218843801 Frigidaire Refrigerator Screw
6	WCI G170232-25
7A	STOP, DOOR. PC & FC (2)
8	WCI G162977-08
9	NAMEPLATE FRAME
10A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
10	NAMEPLATE ASSY
11	WCI 3015113
12	WCI G189468-19
13	WCI G169332-08
14	FREEZER-OUTER PANEL-AVOCADO
15	BEARING, HINGE (3)
16A	WCI 3015112
16	WCI 3015111
17	END-HANDLE (2)
18	WCI G189452-01
19A	WCI G185566
19	WCI G189451-01
20	GASKET-FREEZER
21	218730603 Frigidaire Door Gasket
22	WCI G161019-77
23	WCI 3015119
24	WCI 3015048
25	REFRIGERATOR-OUTER PANEL-AVOCADO
26	WCI G89643
