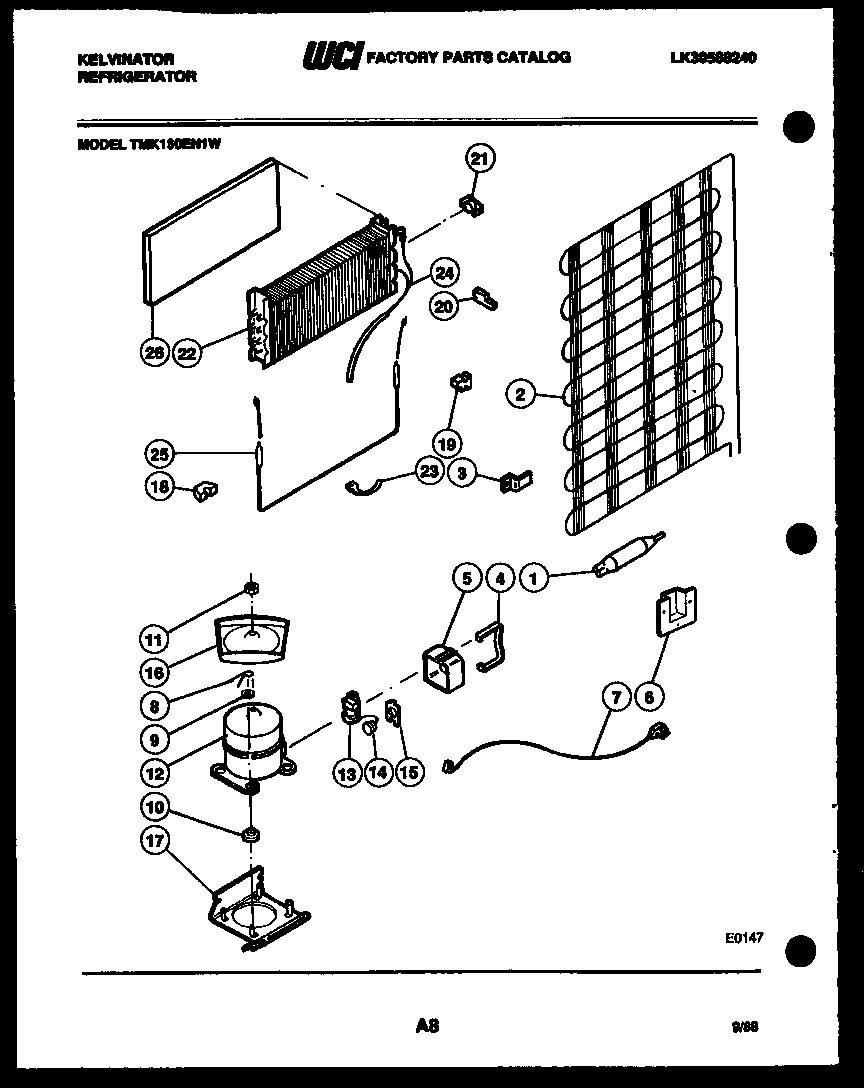

TMK160EN1V 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

TMK160EN1V 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

TMK160EN1V 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*44887WCI G167234
*44885HARNESS-COMPRESSOR
*44886HOT TUBE REPAIR KIT
*448865303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G178225
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI G183584
7CORD, SERVICE
8CLIP, COMPRESSOR MOUNTING (4)
9WASHER, COMPRESSOR MOUNTING (4)
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11NUT, LOCK
12COMPRESSOR-SERVICE
13WCI 3007171
14WCI 3007416
15RETAINER, OVERLOAD
16DEFROST PAN
17PLATE
18BLOCK, LEFT SIDE
19BLOCK, EVAPORATOR, RH
20PLUG, EVAPORATOR INSULATION BLOCK, R H
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22EVAPORATOR
235308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24HEAT, EXCHANGE
25HEATER, DEFROST
26INSULATOR
