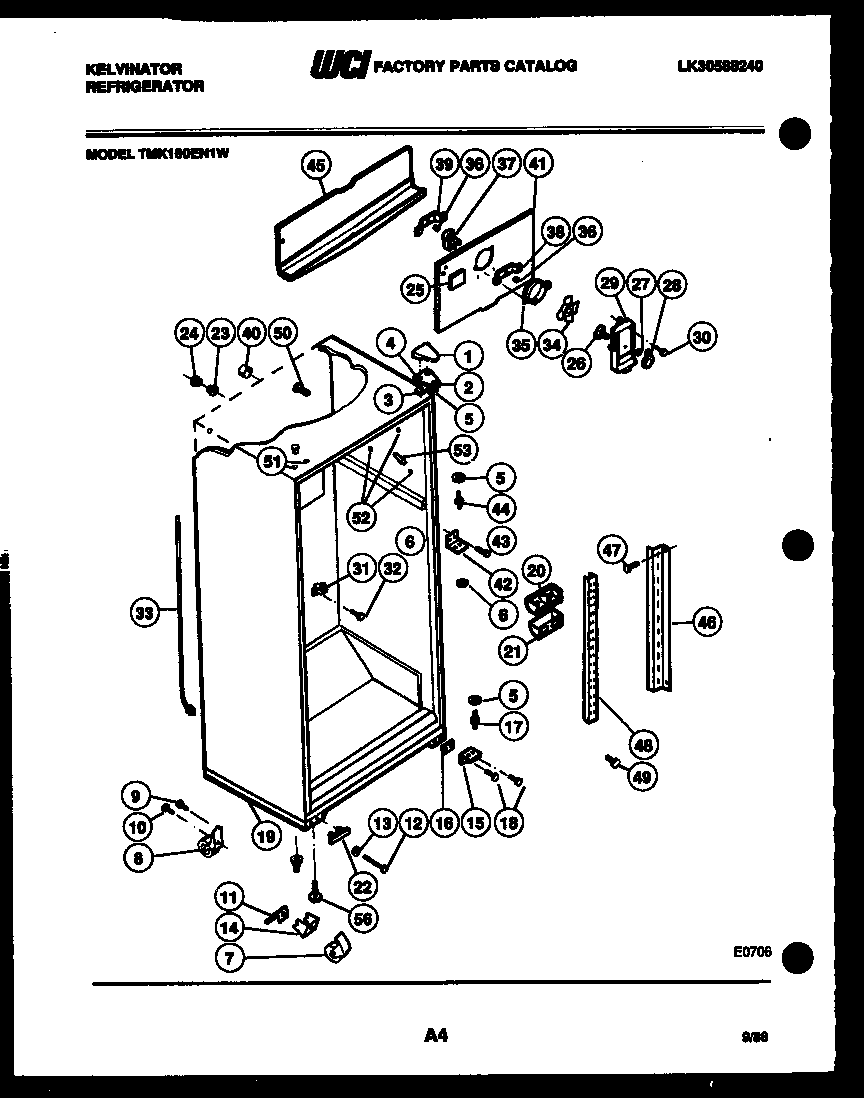

TMK160EN1W 03 – CABINET PARTS

Products

Position	Product
*44789	TAPPING, PLATE (2)
*44789	BUTTON, LINER
*44790	NUT, ANCHOR (2)
*44790	LEG-LEVELING (2)
1	COVER HINGE, WHITE
2	BRACKET, TOP HINGE
3	WCI G183861
4	241710601 Frigidaire Refrigerator Screw
5	WCI G103903
6	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7	ROLLER FRONT, ADJUSTABLE (2)
8	ROLLER, REAR (2)
9	5304455651 Frigidaire Refrigerator Screw
10	BOLT ROLLER (2)
11	SPRING-ROLLER (2)
12	BOLT-ROLLER (2)
13	WASHER
14	SUPPORT, ROLLER (2)
15	BRACKET-HINGE
16	SHIM, HINGE
17	5303001321 Frigidaire Refrigerator Lower Hinge Pin
19	CABINET BASE
20	DEFLECTOR AIR
21	WCI G162178
22	WCI G166912
23	WCI G174733
24	WCI G177734
25	PLUG, DECORATIVE
26	DAMPER FAN COVER
27	NUT, DAMPER MOUNTING
28	WCI G162747-22
29	WCI G163061-76
29A	5304455650 Frigidaire Refrigerator Screw
30	WCI 3015118
31	SPOUT DRAIN TUBE
32	PIN PUSH SPOUT (2)
33A	RING, SEAL (NON-ILLUSTRATED)
33	TUBE, DRAIN
34	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
35	RING, FAN ORIFICE
36	G187559 Frigidaire Refrigerator Bushing
37	5300158289 Frigidaire Evaporator Fan Motor
38	WCI G185302
39	WCI G185303
40	TUBE, INSULATION (2)
41A	NUT, ORIFICE (2)
41	COVER-COIL
42	BRACKET, HINGE CENTER
43	SCREW, BRACKET MOUNTING (4)
44	WCI G142220
45	TROUGH-DRAIN
46	CHANNEL, SHELF (2)
47	5304455852 Frigidaire Refrigerator Screw
48	WCI G189341
49	SCREW (3) (NON-ILLUSTRATED)
50	WCI G163669
51	WCI G174747–01
52	5304509705 Frigidaire Refrigerator Grommet
52A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
53	WCI G179684-01
