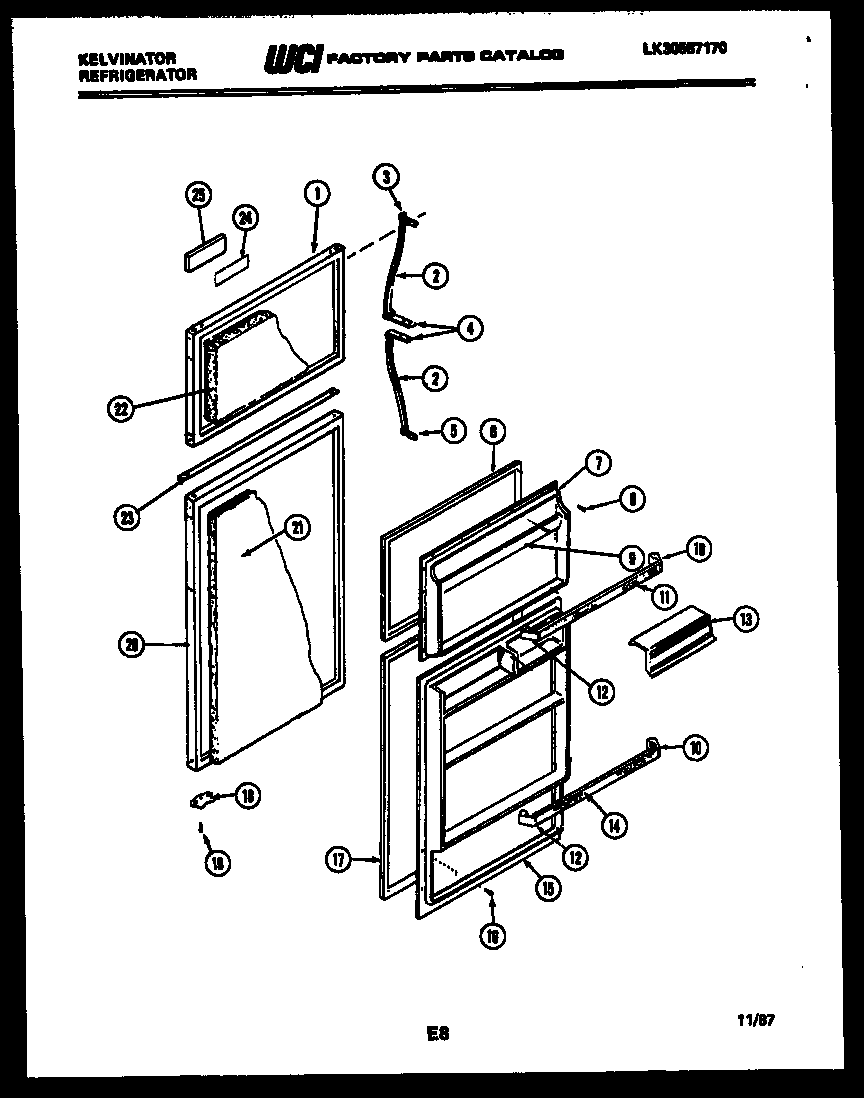

TMK180EN0D 02 – DOOR PARTS

Products

Position	Product
*12026	WCI G162991-04
*12045	WCI G162977-11
*12027	WCI 3015112
*12041	WCI G169332-11
*12029	WCI G172723-11
1	WCI G189845-11
2A	WCI G185566
2	WCI 3015111
3	WCI G189452-01
4	END-HANDLE (2)
5	WCI G189451-01
6	GASKET
7	INNER PANEL
9	WCI 3015063
10	SUPPORT RS (3)
11	WCI 3015060
12	SUPPORT LS (3)
13	DAIRY DOOR (2)
14	WCI 3015061
15	INNER PANEL-REFRIGERATOR
16	5304455651 Frigidaire Refrigerator Screw
17	GASKET
18	STOP, DOOR. PC & FC (2)
19	BEARING, HINGE (3)
20	REFR DOOR-ALMD
21	INSULATION, LOWER EXTERIOR DOOR
22	INSULATION, UPPER EXTERIOR DOOR
23	WCI G189468-19
23A	TRIM-FREEZER DOOR
24	WCI 3015116
25	NAMEPLATE FRAME
