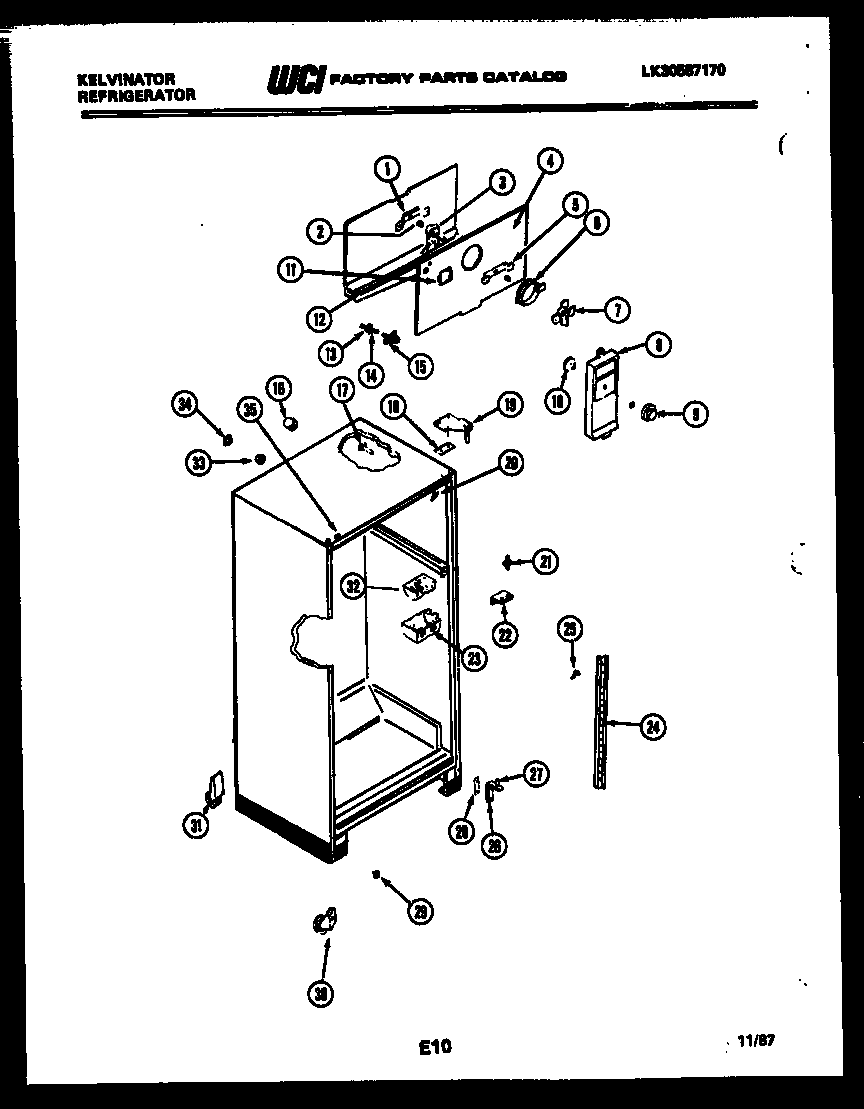

TMK180EN0D 03 – CABINET PARTS

Products

Position	Product
*12088	215667501 Frigidaire Refrigerator Ice Tray Primary
*12092	COVER, TOP HINGE, ALMOND
*12087	WCI G161015-17
*12089	TAPPING PLATE (2)
1	WCI G185303
2	G187559 Frigidaire Refrigerator Bushing
3	5300158289 Frigidaire Evaporator Fan Motor
4	WCI G177529
5	WCI G185302
6	RING, FAN ORIFICE
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI G163061-76
9A	NUT, DAMPER MOUNTING
9	WCI G162747-22
10	DAMPER FAN COVER
11	BUTTON DECORATIVE PLUG
12	WCI G177534
13	RING, SEAL (NON-ILLUSTRATED)
14	TUBE, DRAIN
15	SPOUT DRAIN TUBE
16	TUBE, INSULATION (2)
17	WCI G163669
18	WCI G183861
19A	WCI G103903
19	BRACKET, TOP HINGE
19A	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
20	TRIM-CORNER, ALMOND (4)
21	WCI G142220
22	BRACKET, HINGE CENTER
22A	SCREW, BRACKET MOUNTING (4)
23	WCI G162178
24	CHANNEL, SHELF (2)
24A	WCI G189341
25	5304455852 Frigidaire Refrigerator Screw
26	BRACKET-HINGE
27	5303001321 Frigidaire Refrigerator Lower Hinge Pin
28	SHIM, HINGE
28A	241710601 Frigidaire Refrigerator Screw
29	WCI G166912
30	ROLLER FRONT, ADJUSTABLE (2)
30A	SPRING-ROLLER (2)
30C	SUPPORT, ROLLER (2)
30B	BOLT-ROLLER (2)
31A	BOLT ROLLER (2)
31	ROLLER, REAR (2)
32	DEFLECTOR AIR
33	WCI G174733
34	WCI G174734
35	WCI G174747-11
