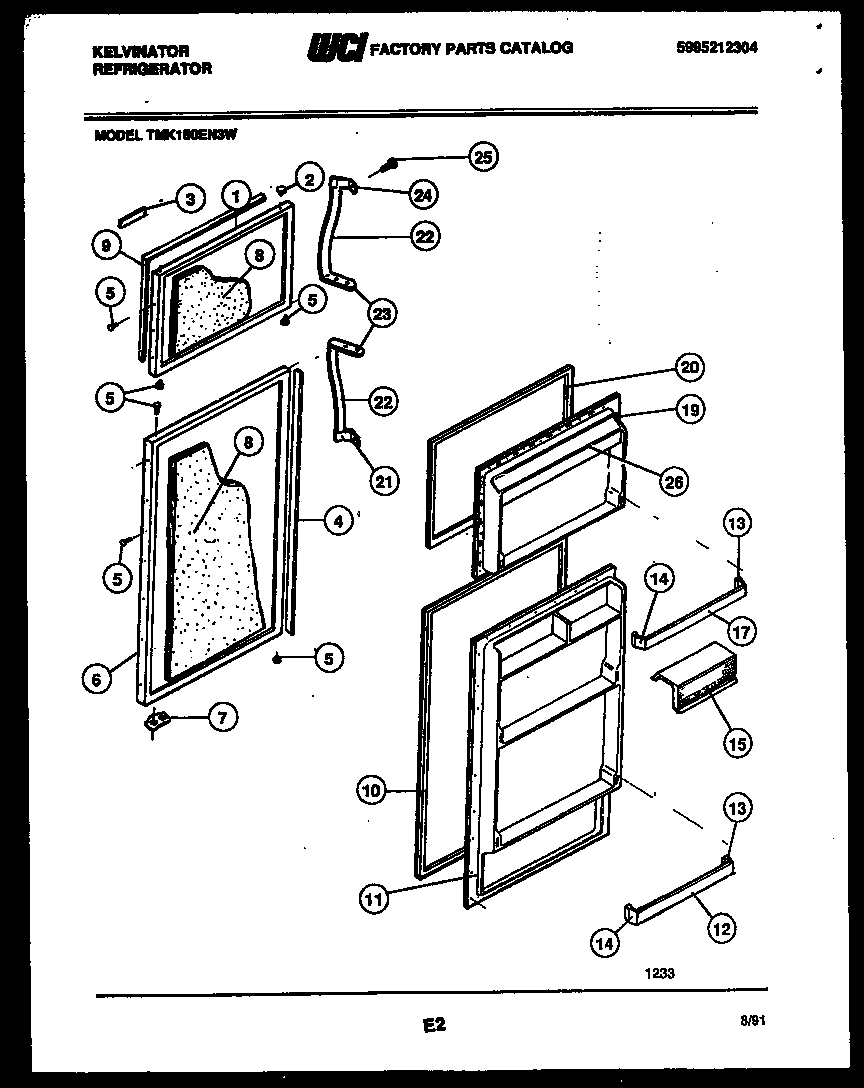

TMK180EN3W 02 – DOOR PARTS

Products

Position	Product
*22320	TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
1	WCI 5303916868
2	PLUG-BUTTON, WHITE, HINGE BRG HOLE
3	NAMEPLATE ASSY
4	WCI G189468-19
5	240494001 Frigidaire Refrigerator Plug Button
6A	BEARING-HINGE
6	PANEL-REFR DOOR, WHITE, W/INSUL & BRACE
7	DOOR STOP, REFR SECTION
7A	WCI 5308000255
8	INSULATION-BULK (NON-ILLUSTRATED)
9	TRIM-FREEZER DOOR
10	GASKET-REFRIG DOOR
11	INNER PANEL-REFRIGERATOR
12	WCI 3015061
13	WCI 5317828701
14	WCI 5317828401
15	DAIRY DOOR (2)
17	WCI 3015060
19A	5304455651 Frigidaire Refrigerator Screw
19	INNER PANEL-FRZR
20	WCI 5303001486
21	HANDLE, END-BOTTOM
22A	INSERT – HANDLE (NON-ILLUSTRATED)
22	WCI 5303015111
23	WCI 5318945301
24	HANDLE END-TOP
25	WCI 5308011745
26	WCI 3015063
