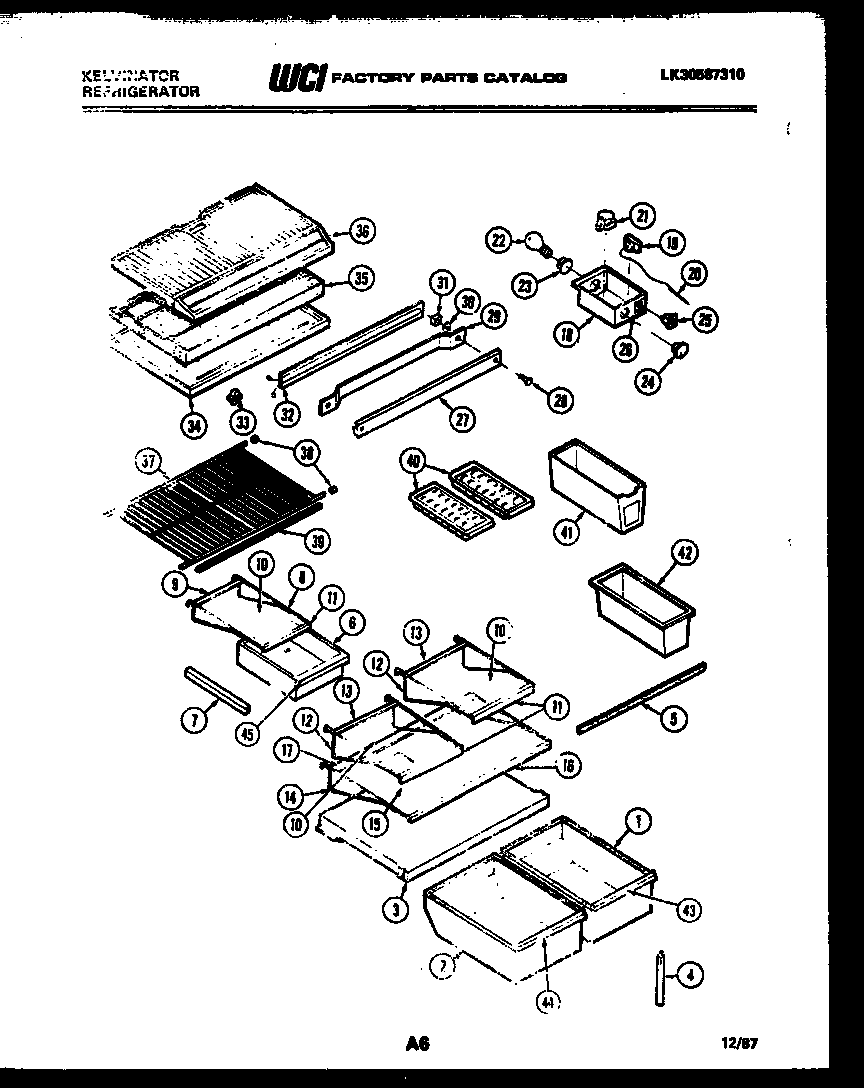

TMK206EN1T 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 3016529
2	WCI 3016530
3	COVER-PAN
4	WCI 3016528
5	GASKET, COVER
6	WCI 3015333
7B	SCREW-HANGER (2) (NON-ILLUSTRATED)
7	HANGAR, LEFT SIDE
7A	HANGAR, RIGHT SIDE
8	WCI G187218-04
9	WCI G172436-15
10	WCI 3016527
11	WCI G172434-09
12	WCI G171608-13
13	TRIM-REAR (2)
14	WCI G171608-04
15	WCI 3016526
16	WCI G172434-08
17	WCI G172436-05
18	WCI G176722-03
18A	5304455650 Frigidaire Refrigerator Screw
19A	WCI G107080
19	COLD CONTROL
20	TUBE
21	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
21A	5304455649 Frigidaire Refrigerator Screw
22	316538904 Frigidaire Oven Lamp Light
23	SOCKET LIGHT
24	KNOB
25	SWITCH SLIDE
26	LABEL
27	WCI G180373-09
28	SCREW, BRACKET MOUNTING (4)
29	STRAP, MULLION MOUNTING
30	WASHER (2)
31	SPACER, MULLION (2)
32	WCI G177254
33	5309918806 Frigidaire Refrigerator Light Switch Door
34A	SCREW (5)
34	TOP-REFRIGERATOR
35	WCI G184683
36	WCI G184604
36A	HARNESS-DIVIDER (NON-ILLUSTRATED)
37	SHELF-FREEZER
38	WCI G166495-01
39	WCI G172434-34
40	215667501 Frigidaire Refrigerator Ice Tray Primary
41	WCI G161015-17
42	WCI 3015068
43	WCI 3016531
44	TRIM-SMALL PAN
45	WCI G161013-67
