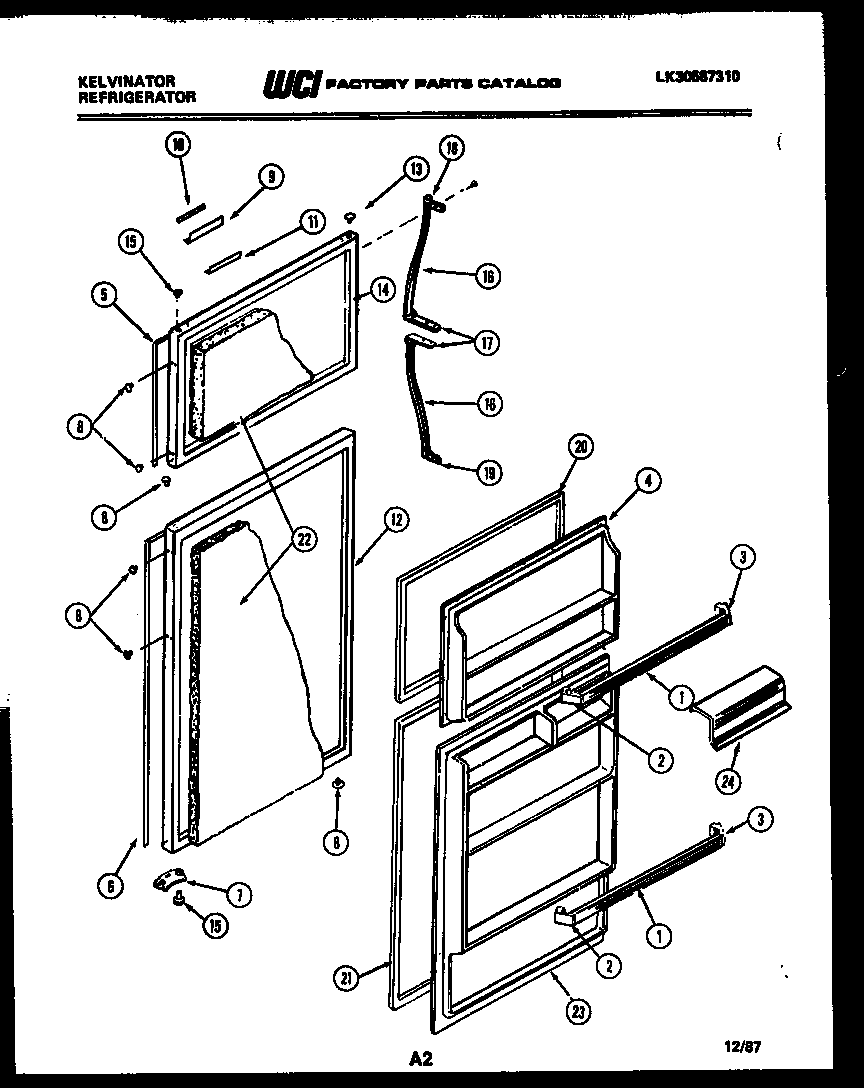

TMK206EN1W 02 – DOOR PARTS

Products

Position	Product
1	WCI 3016516
2	SUPPORT LS (3)
3	SUPPORT RS (3)
4	WCI 3016517
5	WCI 3016181
6	WCI G189468-19
7A	STOP, DOOR. PC & FC (2)
8	240494001 Frigidaire Refrigerator Plug Button
9	NAMEPLATE FRAME
9A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
9B	WCI 3015116
10	WCI 3016518
11	WCI 3016519
12	REFR DOOR-WHTE
13	WCI G169332-01
14	WCI G189640
15	BEARING, HINGE (3)
16A	WCI 3015112
16	WCI 3015111
17	END-HANDLE (2)
18	WCI G189452-01
19A	WCI G185566
19	WCI G189451-01
20	GASKET
21	GASKET
22	WCI G89643
23A	5304455651 Frigidaire Refrigerator Screw
23	INNER PANEL-REFRIGERATOR
24	DAIRY DOOR (2)
