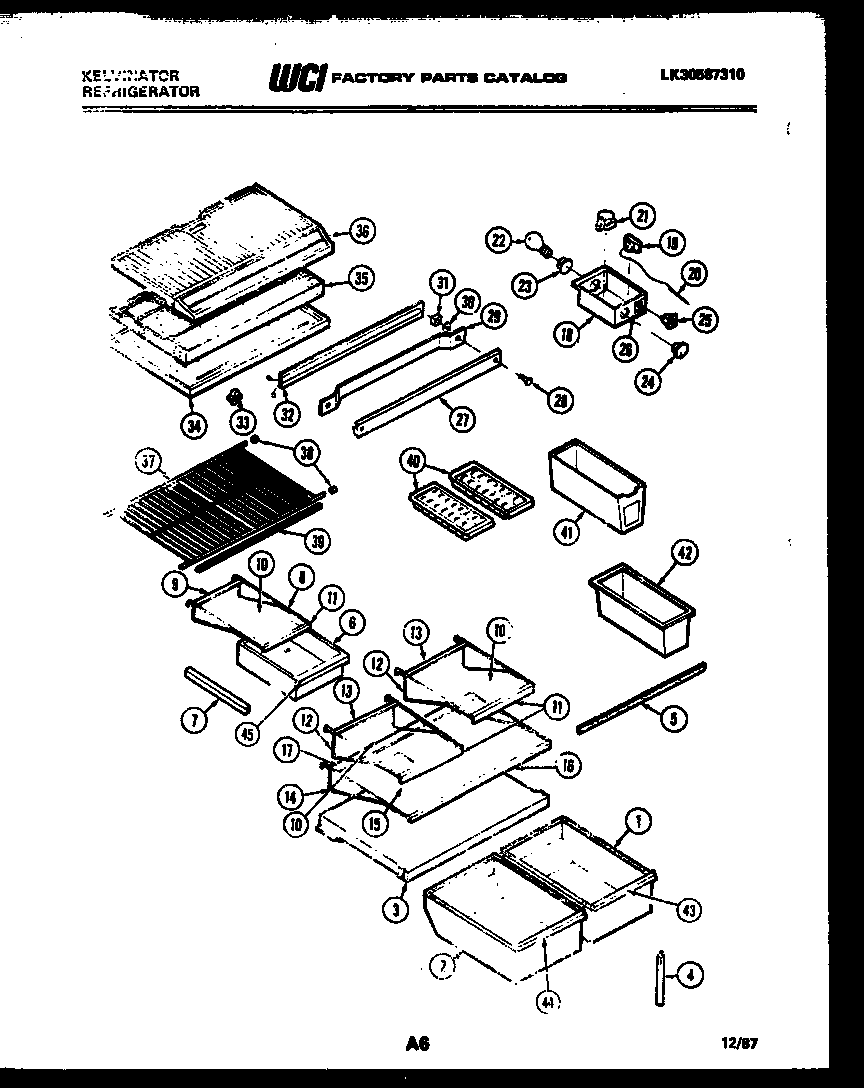

TMK206EN1W 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 3016529
2	WCI 3016530
3	COVER-PAN
4	WCI 3016528
5	GASKET, COVER
6	WCI 3015333
7B	SCREW-HANGER (2) (NON-ILLUSTRATED)
7	HANGAR, LEFT SIDE
7A	HANGAR, RIGHT SIDE
8	WCI G187218-04
9	WCI G172436-15
10	WCI 3016527
11	WCI G172434-09
12	WCI G171608-13
13	TRIM-REAR (2)
14	WCI G171608-04
15	WCI 3016526
16	WCI G172434-08
17	WCI G172436-05
18	WCI G176722-03
18A	5304455650 Frigidaire Refrigerator Screw
19A	WCI G107080
19	COLD CONTROL
20	TUBE
21	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
21A	5304455649 Frigidaire Refrigerator Screw
22	316538904 Frigidaire Oven Lamp Light
23	SOCKET LIGHT
24	KNOB
25	SWITCH SLIDE
26	LABEL
27	MULLION, WHITE
28	SCREW, BRACKET MOUNTING (4)
29	STRAP, MULLION MOUNTING
30	WASHER (2)
31	SPACER, MULLION (2)
32	WCI G177254
33	5309918806 Frigidaire Refrigerator Light Switch Door
34A	SCREW (5)
34	TOP-REFRIGERATOR
35	WCI G184683
36	WCI G184604
36A	HARNESS-DIVIDER (NON-ILLUSTRATED)
37	SHELF-FREEZER
38	WCI G166495-01
39	WCI G172434-34
40	215667501 Frigidaire Refrigerator Ice Tray Primary
41	WCI G161015-17
42	WCI 3015068
43	WCI 3016531
44	TRIM-SMALL PAN
45	WCI G161013-67
