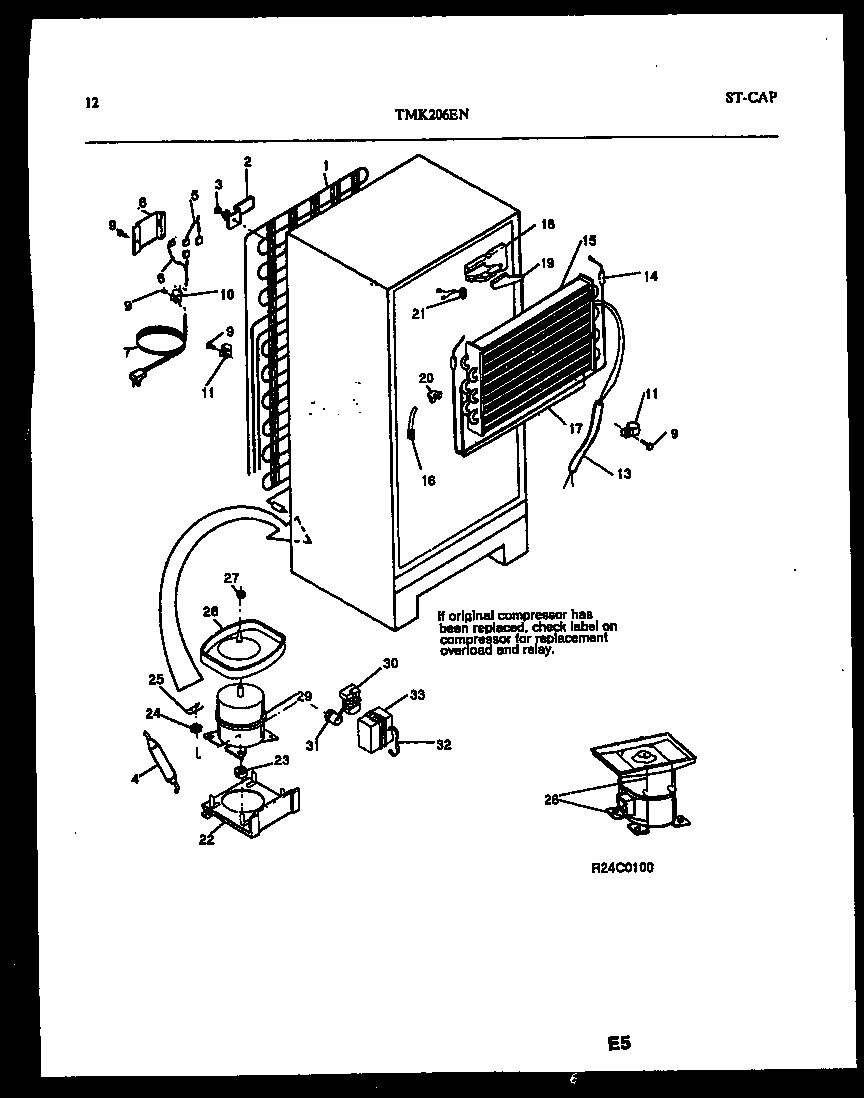

TMK206EN3D 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*19450HOT TUBE REPAIR KIT-SERVICE
1WCI 5300163133
2BRACKET-MTG (4)
3WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS-DIVIDER (NON-ILLUSTRATED)
6WIRING HARNESS, COMPRESSOR,
7CORD-ELECTRIC POWER
8WCI 5303001197
95304455651 Frigidaire Refrigerator Screw
105303001199 Frigidaire Refrigerator Wiring Harness Clamp
115308000133 Frigidaire Refrigerator Clamp
13WCI 5308000728
145317842502 Frigidaire Defrost Heater
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
265303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26PAN-DEFROST-ORIG COMPRESSOR
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29CAPACITOR
29COMPRESSOR W/ ELECTRICALS
30RELAY-TL
31WCI 5303270294
32WCI 5303211232
33WCI 5303209254
