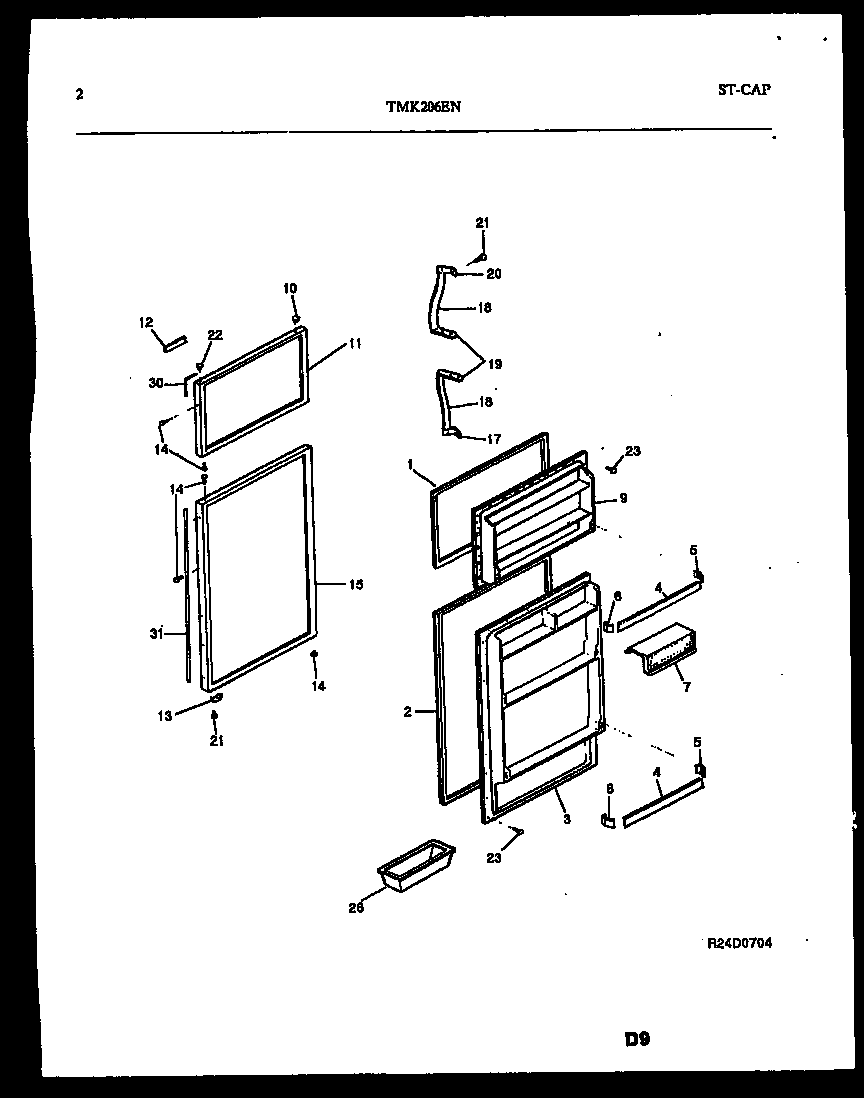

TMK206EN3W 02 – DOOR PARTS

Products

Position	Product
*19437	INSULATION-BULK (NON-ILLUSTRATED)
*19437	TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
1	GASKET-FRZR
2	GASKET-REFRIG DOOR
3	INNER PANEL-REFRIGERATOR
4	WCI 3016516
5	WCI 5317828701
6	WCI 5317828401
7	DAIRY DOOR (2)
9	WCI 3016517
10	PLUG-BUTTON, WHITE, HINGE BRG HOLE
11	PANEL-FRZR DOOR, WHITE, W/INSULATION
12	NAMEPLATE ASSY
13	DOOR STOP, REFR SECTION
13	WCI 5308000255
14	240494001 Frigidaire Refrigerator Plug Button
15	PANEL-REFR DOOR, WHITE, W/INSUL & BRACE
17	HANDLE, END-BOTTOM
18	WCI 5303015111
18	INSERT-HANDLE GRIP, (2) (NON-ILLUSTRATED)
19	WCI 5318945301
20	HANDLE END-TOP
21	WCI 5308011745
22	BEARING-HINGE
23	5304455651 Frigidaire Refrigerator Screw
26	WCI 3015068
30	WCI 3016181
31	WCI 5303272340
