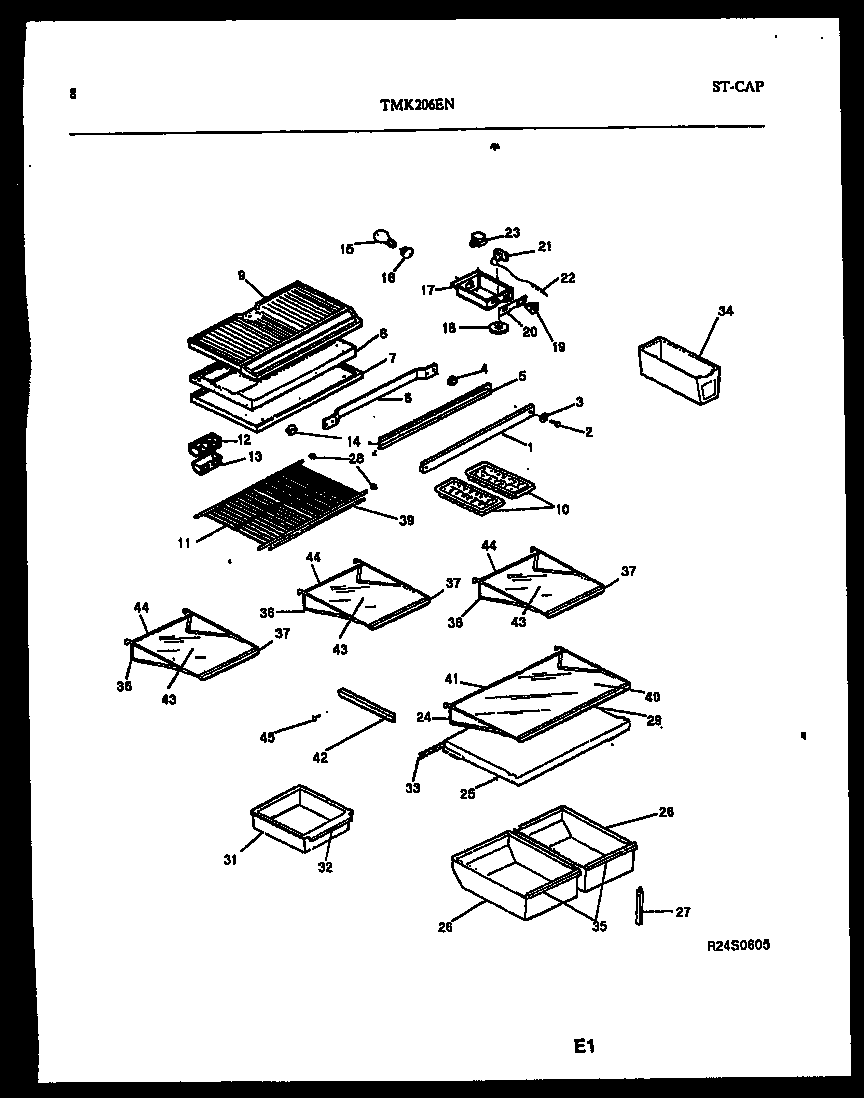

TMK206EN3W 05 – SHELVES AND SUPPORT

Products

Position	Product
*19445	5304455649 Frigidaire Refrigerator Screw
1	WCI 5303200366
2	WCI 5308012258
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	SPACER-MULLION MTG, STEEL
5	WCI 5303210351
6	WCI 5308010008
7	WCI 5303001380
7	BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7	TOP-REFRIGERATOR
8	HARNESS-DIVIDER (NON-ILLUSTRATED)
8	WCI 5308013674
9	BOTTOM, FREEZER
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	WCI 5317705908
12	DEFLECTOR-AIR
13	COVER – AIR DEFLECTOR
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	SOCKET-LIGHT/LAMP
17	5304455650 Frigidaire Refrigerator Screw
17	WCI 5317672203
18	WCI 5308010011
19	SWITCH-ENERGY SAVER, SLIDE TYPE
20	WCI 5303270597
21	WCI 5303200810
21	WCI 5303001260
22	TUBE
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	WCI 5303272333
25	COVER-CRISPER PAN
26	WCI 3016530
26	WCI 3016529
27	SUPPORT, COVER
28	END CAP-SHELF,PROTECTOR
29	TRIM-SHELF
31	WCI 3015333
32	WCI 5303270438
33	GASKET-CRISPER COVER (NON-ILLUSTRATED)
34	WCI 5303271190
35	WCI 3016531
35	WCI 5303270437
36	WCI 5317160813
36	WCI 5318721804
37	WCI 5303270473
39	WCI 5317243432
40	WCI 5303016526
41	WCI 5317243605
42	HANGER-PAN RH (NON-ILLUSTRATED)
42	HANGER-PAN LH
43	WCI 3016527
44	WCI 3001427
44	TRIM-REAR (2)
45	WCI 08014528
19447	CLIP-CANTILEVER SHLF
