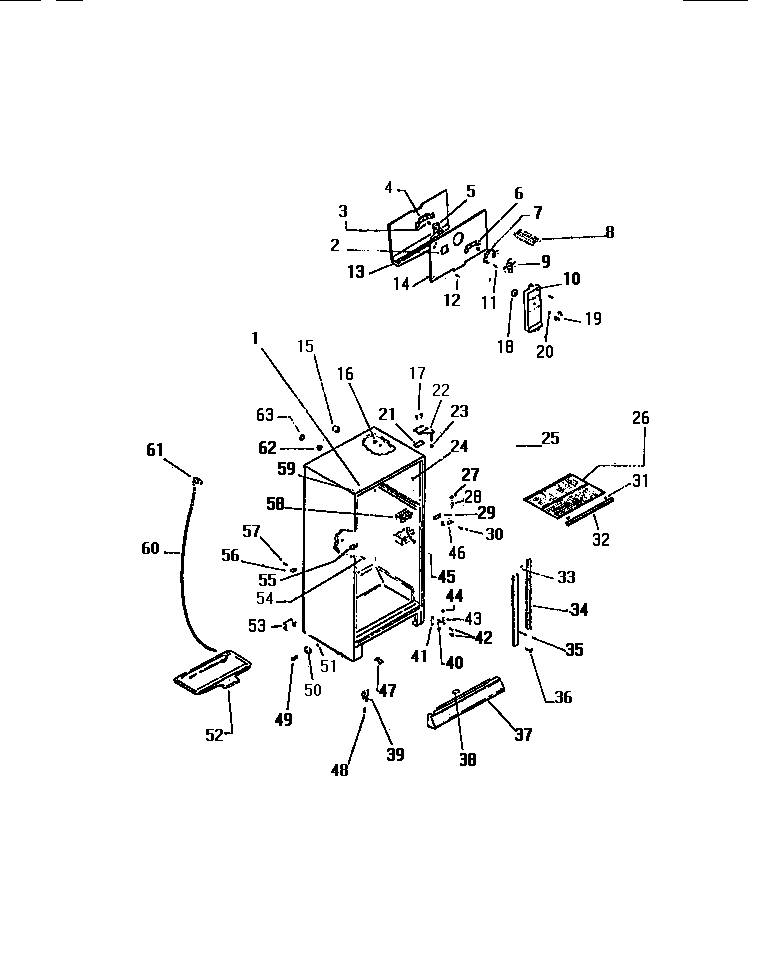

TMK210AN5W 03 – CABINET W/ FAN ASSEMBLY

Products

Position	Product
*80404	COVER HINGE, WHITE
*80405	WCI G179267
*80406	WCI G179266
1	WCI G174747–01
3	G187559 Frigidaire Refrigerator Bushing
4	BRACKET, REAR MOTOR MOUNTING
5	5300158289 Frigidaire Evaporator Fan Motor
6	BRACKET, FRONT MOTOR MOUNTING
7	RING, FAN ORIFICE
8	215667501 Frigidaire Refrigerator Ice Tray Primary
9	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
10	WCI G162512-22
12	216858001 Frigidaire Refrigerator Screw
13	WCI G170071
14	WCI G162050-02
15	TUBE, INSULATION (2)
16	WCI G163669
17	241710601 Frigidaire Refrigerator Screw
18	DAMPER FAN COVER
19	KNOB, DAMPER CONTROL
21	WCI G183861
22	BRACKET, TOP HINGE
24	SUPPORT, SHELF (8)
25	SCREW – SUPPORT TO LINER (8)
26	WCI G163002-02
27	WCI 164355
28	WCI G142220
29	SHIM, HINGE
30	SCREW, MULLION MOUNTING (2)
31	CLIP-TRIM (NON-ILLUSTRATED)
32	TRIM-CLIP-ON (12)
33	5304455852 Frigidaire Refrigerator Screw
34	CHANNEL, SHELF (2)
35	CHANNEL, CENTER SHELF, MOUNTING
36	WCI G163989
37	WCI G161905-06
38	PLUG – LOWER GRILLE
39	ROLLER ASSEMBLY – FRONT (2)
40	BRACKET-LOWER HINGE
41	SHIM, HINGE
42	SCREW – 1/4 X 1 (2)
43	WCI G142361
44	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
45	WCI G162178
46	WCI G162384
47	WCI G162994
48	BOLT, HOUSING TO FRONT RAIL (2)
49	WCI G162809
50	ROLLER (2)
51	NUT, DAMPER MOUNTING
52	PAN, DEFROST
53	BRACKET, DRAIN TUBE
54	5304455650 Frigidaire Refrigerator Screw
55	SPOUT DRAIN TUBE
56	240396801 Frigidaire Refrigerator Tube Clamp
57	5304455651 Frigidaire Refrigerator Screw
58	DEFLECTOR AIR
59	BUTTON DECORATIVE PLUG
60	WCI G155529-01
61	ELBOW, DRAIN
62	WCI G174733
63	WCI G174734
