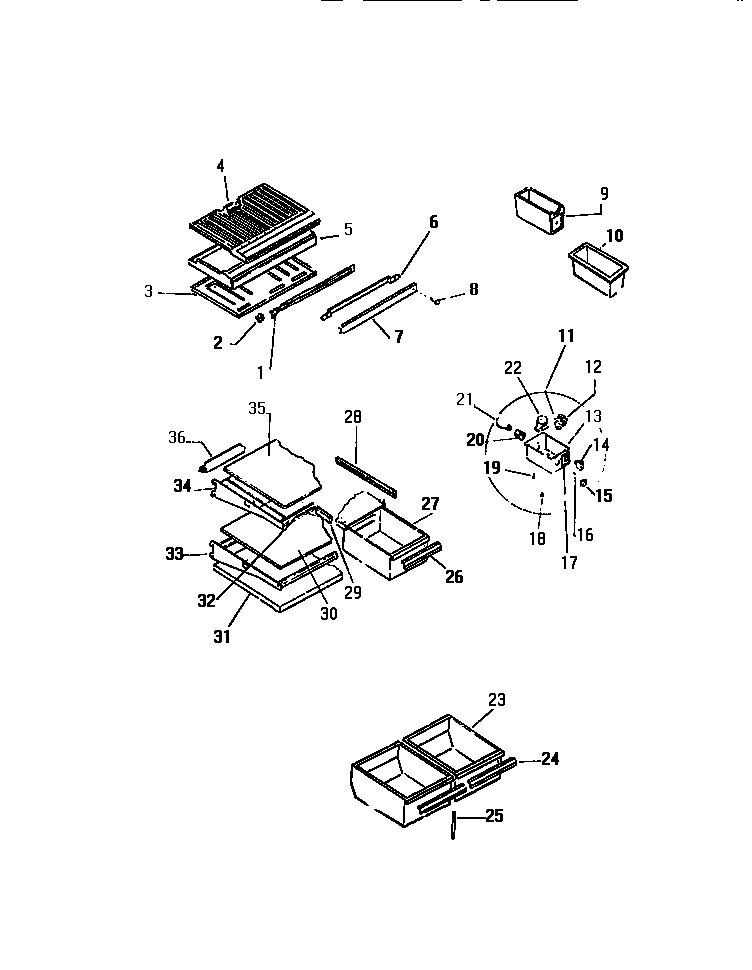

TMK210AN5W 04 – SHELVES, CONTROLS, DIVIDER, MULLION

TMK210AN5W 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

TMK210AN5W 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI G177254
25309918806 Frigidaire Refrigerator Light Switch Door
3WCI G174757
4WCI G174744
5WCI G174758
6STRAP, MULLION MOUNTING
7WCI G162051-01
8SCREW, MULLION MOUNTING (2)
9WCI G161015-10
10WCI G173948-11
11TUBE
12COLD CONTROL
13WCI G174655-17
14WCI G177727-01
15KNOB CONTROL
16WCI G107080
17WCI G178294-01
185304455649 Frigidaire Refrigerator Screw
195304455650 Frigidaire Refrigerator Screw
20SOCKET LIGHT
21316538904 Frigidaire Oven Lamp Light
22215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23WCI G161902-08
24TRIM, CRISPER (2)
25WCI G166310-01
26TRIM, MEAT KEEPER
27WCI G177623-01
28WCI G174366-02
29WCI G174365-02
31WCI G162840-06
32WCI G172434-09
33WCI G175878-05
34FRAME, CANTILEVER SHELF, GLASS, 13 7/16“ (2)
35SHELF, GLASS (HALF), 13-7/16“ (2)
36WCI G172436-15
36TRIM-REAR (2)
