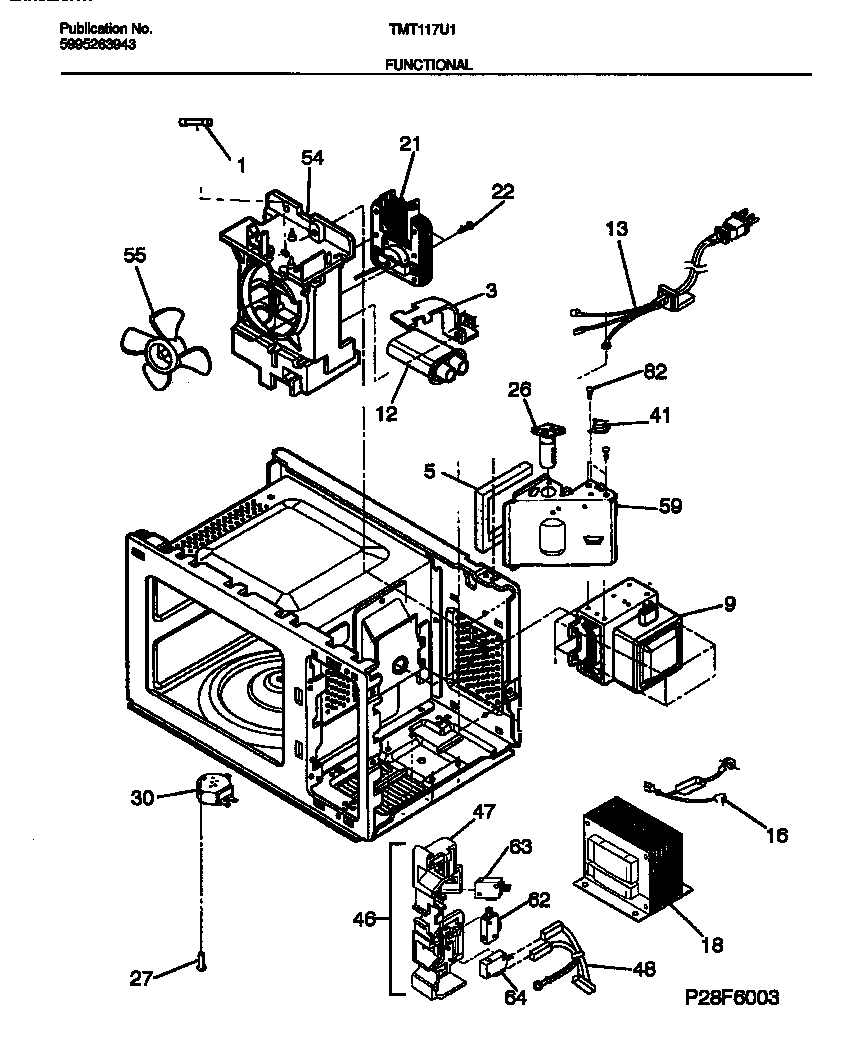

TMT117U1W0 04 – FUNCTIONAL PARTS

Products

Position	Product
*44125	WCI 5303307967
*44124	WCI 5303305382
*44123	WCI 5303305372
*44121	WCI 5303305405
*44122	WCI 5303284220
*44120	WCI 5303284217
1	WCI 5303307973
3	RETAINER-CAPACITOR
5	WCI 5303307972
9	WCI 5303307970
12	WCI 5303307966
13	WCI 5303307968
16	WCI 5303305383
18	WCI 5303307971
21B	NUT-FAN MOTOR (NOT ILLUSTRATED)
21A	WCI 5303305379
22	SCREW-FAN MOTOR
26	WCI 5303305385
27	WCI 5303305373
30	WCI 5303305370
41	WCI 5303305416
46	WCI 5303305375
47	WCI 5303305376
48	WCI 5303307936
54	DUCT-FAN
55	WCI 5303307965
59	WCI 5303307969
62	WCI 5303271369
63	SECONDARY INTERLOCK-SWITCH
64	WCI 5303284023
82	WCI 5303305393
83	SCREW, CAPACITOR MTG., HANDLE
