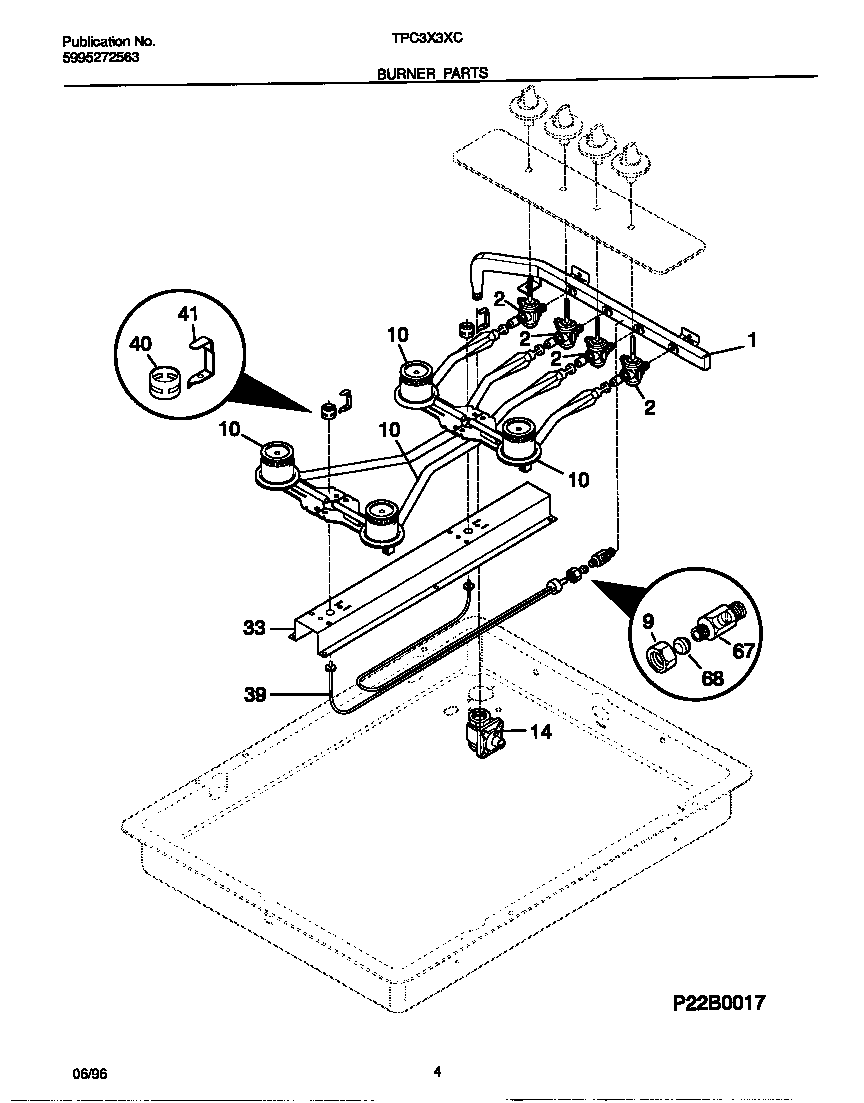

TPC3X3XCDA 03 – BURNER PARTS

Products

Position	Product
1	WCI 5303289927
2B	316048200 Frigidaire Oven Screw
2A	VALVE-TOP BURNER, (4), WITH MTG SCREWS
9	WCI 3201276
10D	WCI 5303311272
10C	WCI 5303311271
10B	WCI 5303311270
10A	WCI 3201433
14	5308007974 Frigidaire Pressure Regulator
33	BRACKET-BURNER MTG
39	TUBING-TOP PILOT
40	WCI 124T010P01
41	SHIELD-PILOT, STAINLESS STEEL, (2)
67	WCI 244T039P01
68	FERRULE-TP BURNER & OVN PILOT/PILOT TUBE (2)
