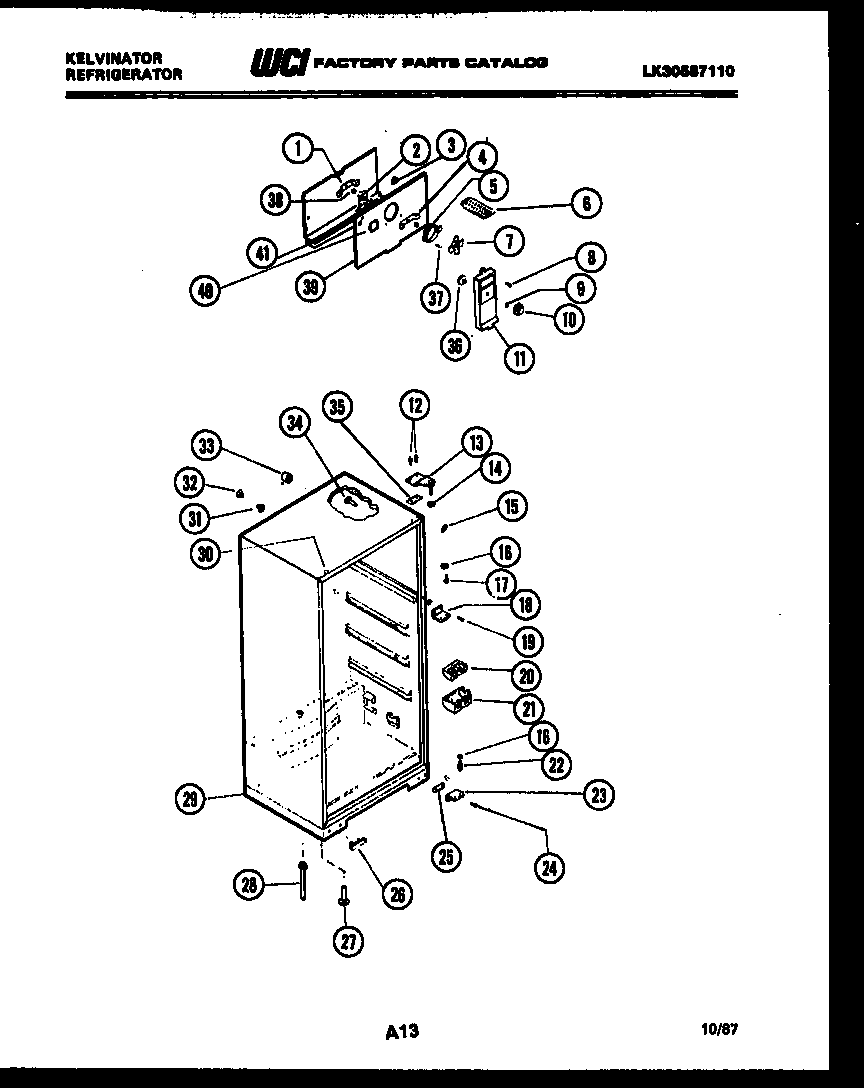

TPK140EN0D 03 – CABINET PARTS

Products

Position	Product
*83564	COVER, TOP HINGE, ALMOND
1	WCI G185303
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
3A	5304455651 Frigidaire Refrigerator Screw
4	WCI G185302
5A	NUT, ORIFICE (2)
5	RING, FAN ORIFICE
6	215667501 Frigidaire Refrigerator Ice Tray Primary
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
9	NUT, DAMPER MOUNTING
10	KNOB-DAMPER CONTROL
11	WCI G163061-89
12	241710601 Frigidaire Refrigerator Screw
13	BRACKET, TOP HINGE
14	WCI G103903
15	TRIM CORNER-ALMOND
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW, BRACKET MOUNTING (4)
20	DEFLECTOR AIR
21	WCI G162178
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	BRACKET, HINGE, LOWER
25	SHIM, HINGE
26	WCI G166912
27A	NUT, ANCHOR (2)
27	LEG-LEVELING (2)
28	CLIP (4)
29	BASE-CABINET
30	WCI G174747-11
31	WCI G174733
32	WCI G174734
33	TUBE, INSULATION (2)
34	WCI G163669
35	WCI G183861
36	DAMPER FAN COVER
37	5304455650 Frigidaire Refrigerator Screw
38	G187559 Frigidaire Refrigerator Bushing
39	COVER-COIL
40	PLUG, DECORATIVE
41	TROUGH-DRAIN
