TPK140EN0F 04 – SHELVES

TPK140EN0F 04 – SHELVES

Written by

in

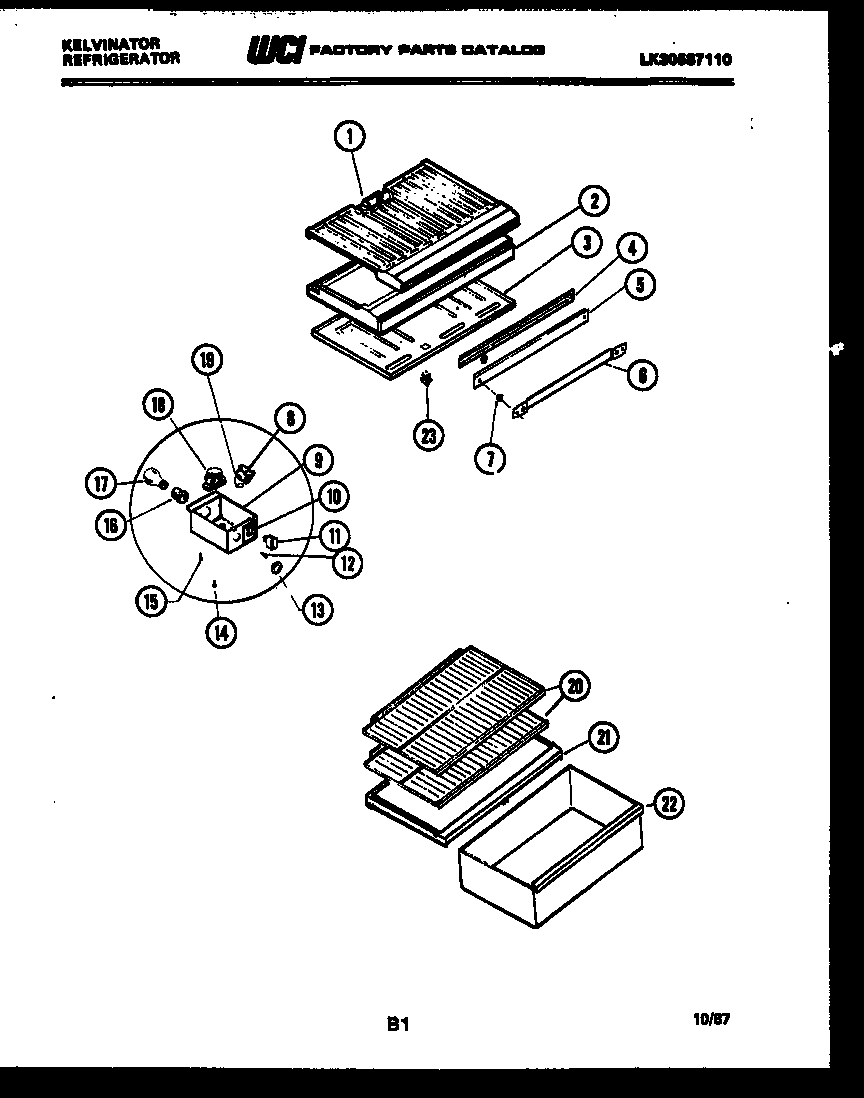

TPK140EN0F 04 – SHELVES

Products

PositionProduct
*83817HARNESS, WIRING
*83823TAPPING, PLATE (2)
1BOTTOM ( FREEZER )
2DIVIDER-COMPARTMENT
3TOP-REFRIGERATOR
4WCI G187921
5WCI G174520-10
6CLAMP, MULLION MOUNTING
7SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
8CONTROL-COLD
9WCI G176722-05
10LABEL-CONTROL BOX
11SWITCH SLIDE
12WCI G107080
13KNOB
145304455650 Frigidaire Refrigerator Screw
155304455649 Frigidaire Refrigerator Screw
16SOCKET LIGHT
17316538904 Frigidaire Oven Lamp Light
18215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
19TUBE
20WCI G172172-01
21COVER
22WCI G162973-37
235309918806 Frigidaire Refrigerator Light Switch Door
