TPK140EN3T 04 – SHELVES AND SUPPORTS

TPK140EN3T 04 – SHELVES AND SUPPORTS

Written by

in

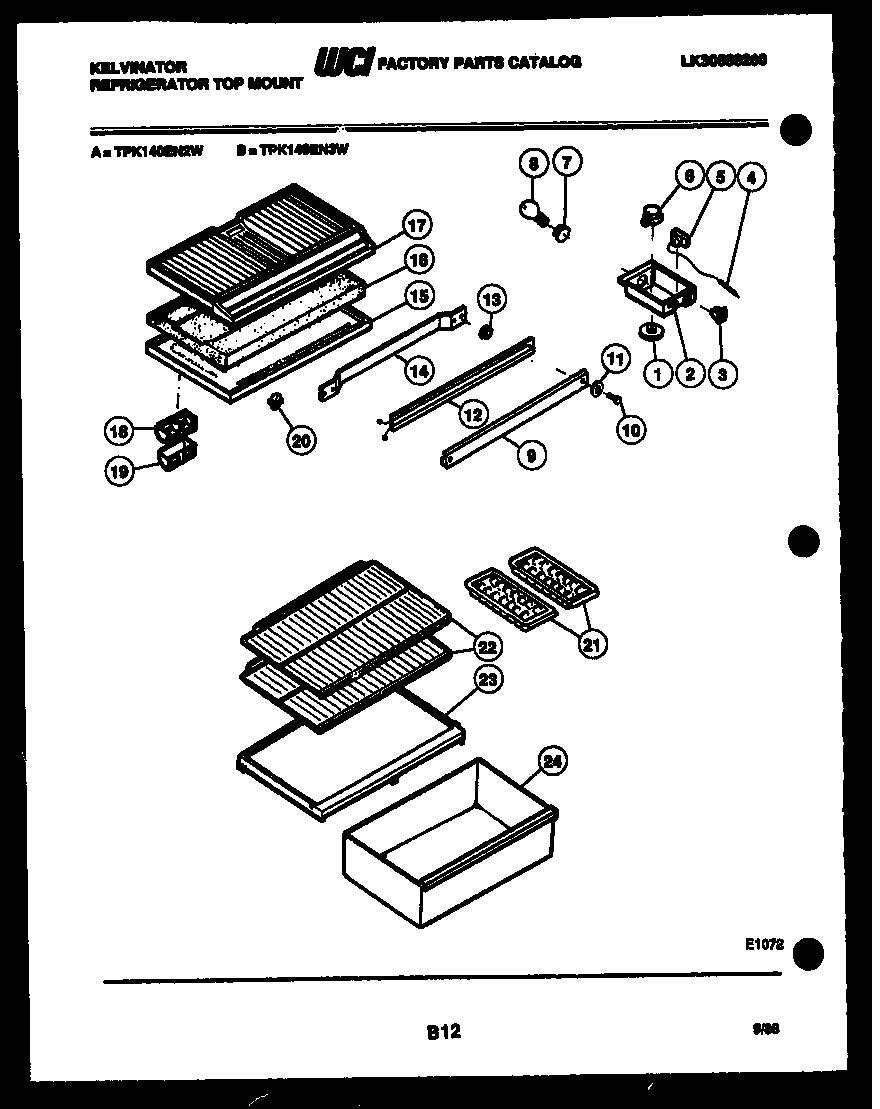

TPK140EN3T 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1KNOB
2WCI G176722-05
2BWCI G183060
2ALABEL-CONTROL BOX
2C5304455650 Frigidaire Refrigerator Screw
3SWITCH SLIDE
4TUBE
5AWCI G107080
5CONTROL-COLD
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7SOCKET LIGHT
8316538904 Frigidaire Oven Lamp Light
9WCI G174520-09
10SCREW, BRACKET MOUNTING (4)
11WASHER (2)
12WCI G187921
13SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
14CLAMP, MULLION MOUNTING
15TOP-REFRIGERATOR
15ASCREW (5)
16DIVIDER-COMPARTMENT
16AHARNESS, WIRING
17BOTTOM ( FREEZER )
18DEFLECTOR AIR
19WCI G162178
205309918806 Frigidaire Refrigerator Light Switch Door
21215667501 Frigidaire Refrigerator Ice Tray Primary
22WCI G172172-01
23COVER
24WCI G162973-37
