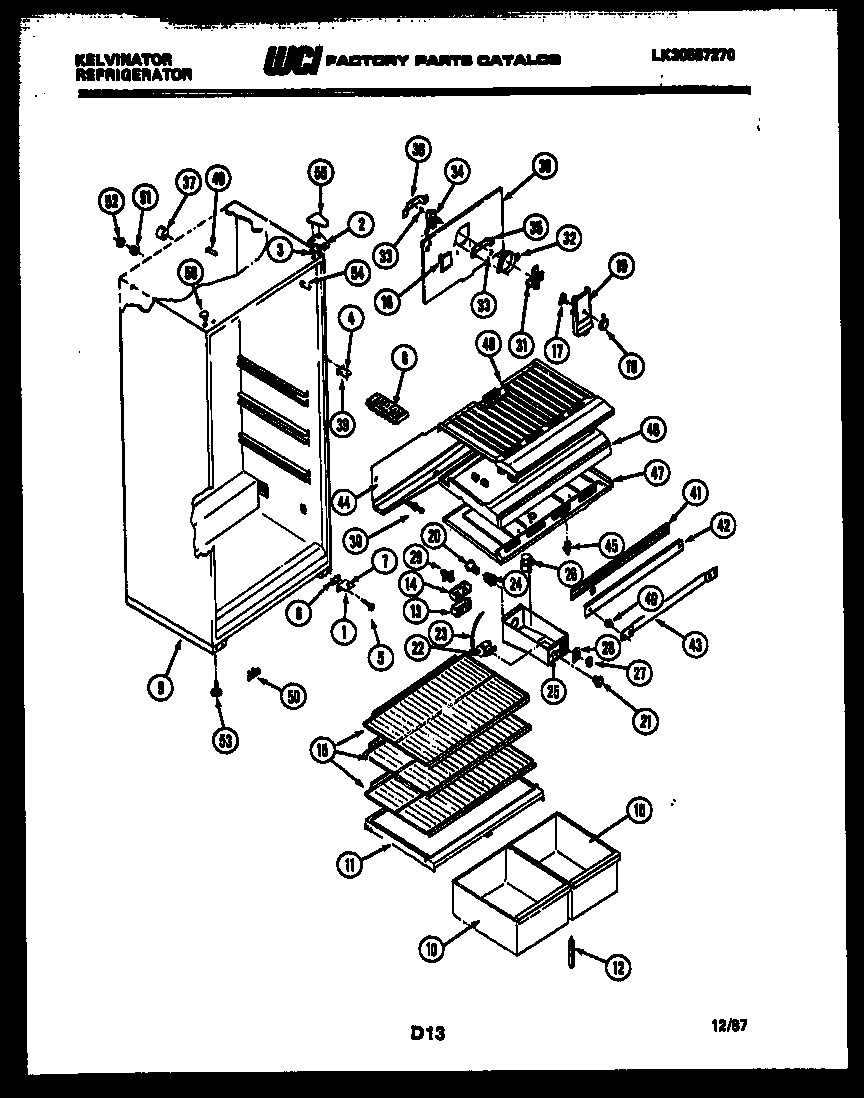

TPK160EN0W 03 – CABINET PARTS

TPK160EN0W 03 – CABINET PARTS

Written by

in

TPK160EN0W 03 – CABINET PARTS

Products

PositionProduct
*19089BUTTON, LINER
*19090BUTTON, PLUG, LINER (2)
*19090TAPPING, PLATE (2)
1BRACKET-HINGE
2BRACKET, TOP HINGE
2BWCI G103903
2A241710601 Frigidaire Refrigerator Screw
3WCI G183861
4AWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
4WCI G142220
6SHIM, HINGE
75303001321 Frigidaire Refrigerator Lower Hinge Pin
8WCI 156376-18
9CABINET BASE
10WCI 3016154
11WCI G490016-03
12SUPPORT, CRISPER COVER
13WCI G162178
14DEFLECTOR AIR
15WCI G178511-01
16BUTTON DECORATIVE PLUG
17DAMPER FAN COVER
17ANUT, DAMPER MOUNTING
18KNOB-DAMPER CONTROL
19WCI 3015421
20316538904 Frigidaire Oven Lamp Light
21KNOB
22COLD CONTROL
22AWCI G107080
23TUBE
24SOCKET LIGHT
25WCI G176722-05
25A5304455650 Frigidaire Refrigerator Screw
26215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
26A5304455649 Frigidaire Refrigerator Screw
27SWITCH SLIDE
28LABEL-CONTROL BOX
29BRING, SEAL (NON-ILLUSTRATED)
29SPOUT DRAIN TUBE
29APIN PUSH SPOUT (2)
30TUBE, DRAIN
315308000010 Frigidaire Refrigerator Evaporator Fan Blade
32RING, FAN ORIFICE
33G187559 Frigidaire Refrigerator Bushing
345300158289 Frigidaire Evaporator Fan Motor
35WCI G185302
36AWCI G164571
36B5304455651 Frigidaire Refrigerator Screw
36WCI G185303
37TUBE, INSULATION (2)
38COVER-COIL
38ANUT, ORIFICE (2)
39BRACKET, HINGE CENTER
39BWASHER (2)
39ASCREW, BRACKET MOUNTING (4)
40SPACER, MULLION (2)
41HTR, CENTER RAIL
42WCI G490086-01
43CLAMP, MULLION MOUNTING
44TROUGH-DRAIN
455309918806 Frigidaire Refrigerator Light Switch Door
46DIVIDER, CENTER
46AHARNESS, WIRING
47TOP PC
47ASCREW (5)
48BOTTOM, FC
49WCI G163669
50WCI G166912
51WCI G174733
52WCI G174734
53ANUT, ANCHOR (2)
53LEG-LEVELING (2)
54WCI G179684-01
55COVER HINGE, WHITE
56AWCI G174747–01
