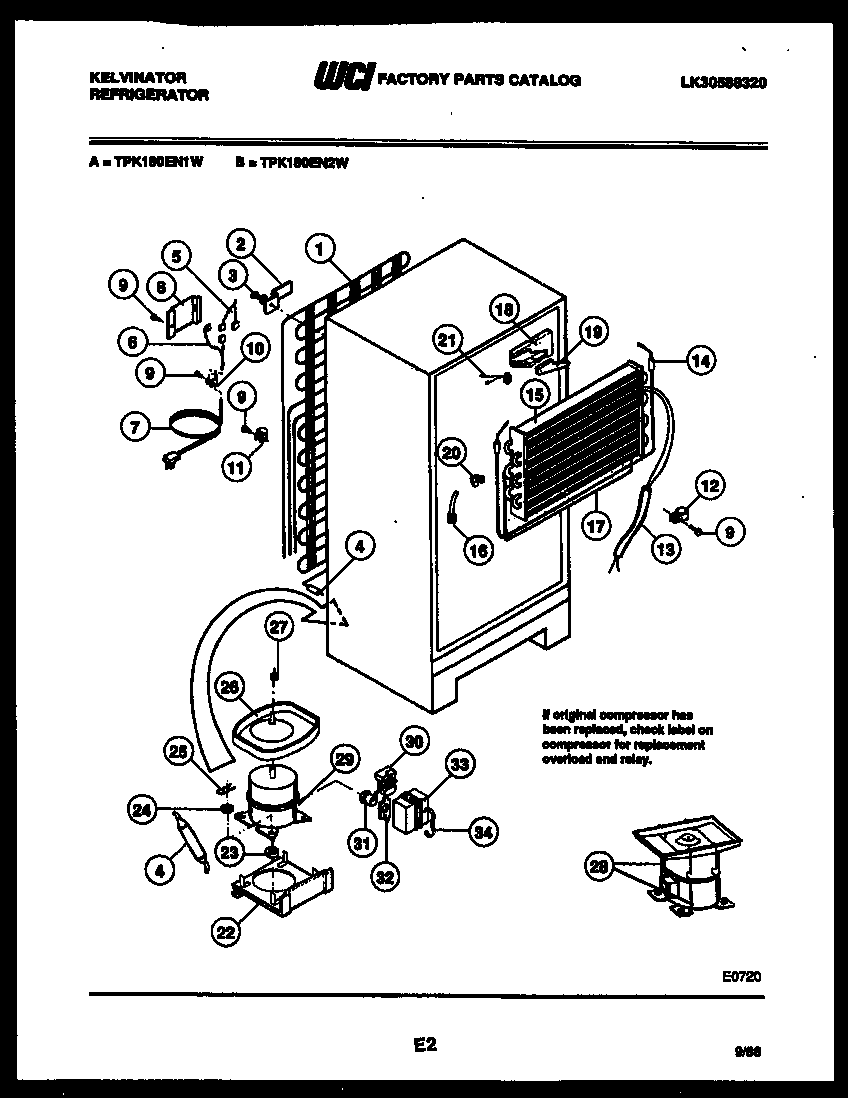

TPK180EN2F 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

TPK180EN2F 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

TPK180EN2F 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*48531HOT TUBE REPAIR KIT
1WCI G162739
2BRACKET-CONDENSER MOUNTING (4)
35308000039 Frigidaire Refrigerator Screw
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS, WIRING
6HARNESS-COMPRESSOR
7CORD, SERVICE
8WCI G183584
95304455651 Frigidaire Refrigerator Screw
105303001199 Frigidaire Refrigerator Wiring Harness Clamp
11240396801 Frigidaire Refrigerator Tube Clamp
13HEAT-EXCH
145317842502 Frigidaire Defrost Heater
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR
18BLOCK, EVAPORATOR, RH
19PLUG, EVAPORATOR INSULATION BLOCK, R H
20BLOCK, LEFT SIDE
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22PLATE
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER, COMPRESSOR MOUNTING (4)
25CLIP, COMPRESSOR MOUNTING (4)
26A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26DEFROST PAN
26ADEFROST PAN & NUT
27NUT, LOCK
28PAN RETAINER KIT-SERVICE
29COMPRESSOR
30AWCI G182225-11
30WCI G182225-12
31WCI G185797
31AWCI G187874
33WCI G185792
34STRAP-COVER
34A5303006412 Frigidaire Refrigerator Cover Mounting Strap
