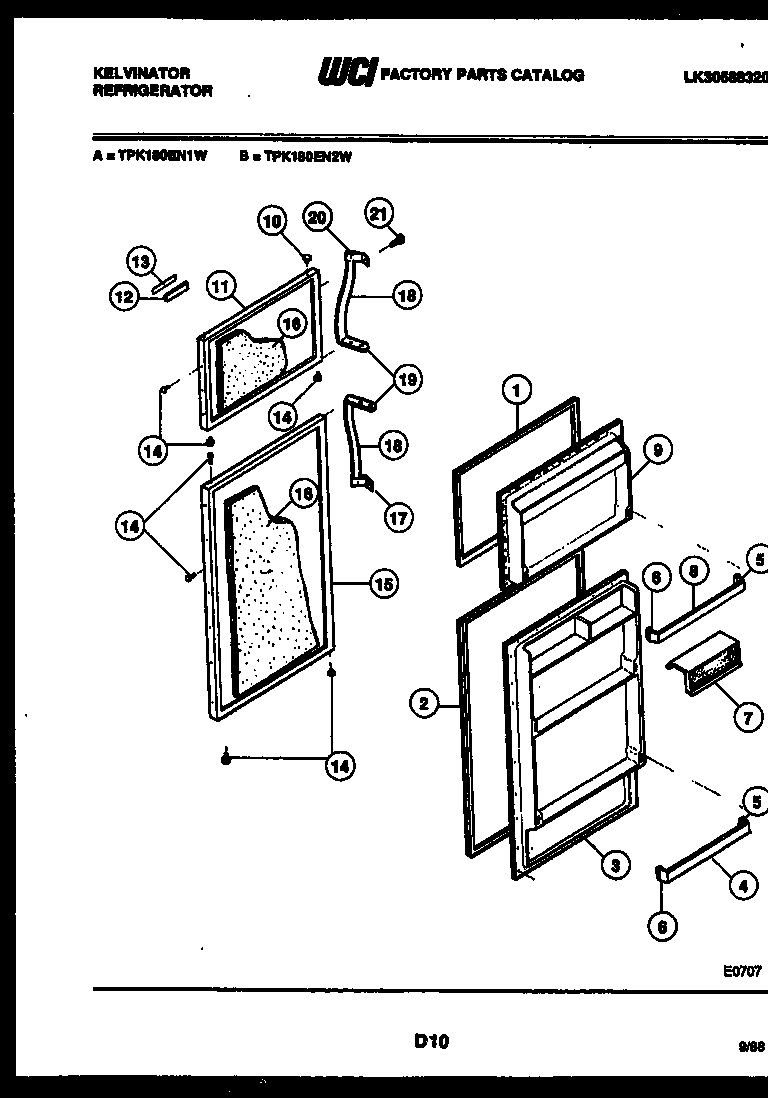

TPK180EN2T 02 – DOOR PARTS

Products

Position	Product
1	GASKET
2	GASKET
3	INNER PANEL
4	WCI 3015420
5	SUPPORT RS (3)
6	SUPPORT LS (3)
7	DOOR, DAIRY
8	WCI 3015419
9A	5304455651 Frigidaire Refrigerator Screw
9	INNER PANEL
10	WCI G169332-09
11	WCI 3916270
12A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
12	NAMEPLATE FRAME
13	LABEL-NAMEPLATE
14	WCI G162977-09
15A	BEARING, HINGE (3)
15	REFR DOOR (WHEAT)
16	WCI G89643
17	WCI G189451-01
18A	TRIM INSERT-GRIP (2) (NON-ILLUSTRATED)
18	WCI 3201377
19	END-HANDLE (2)
20	WCI G189452-01
21	WCI G185566
