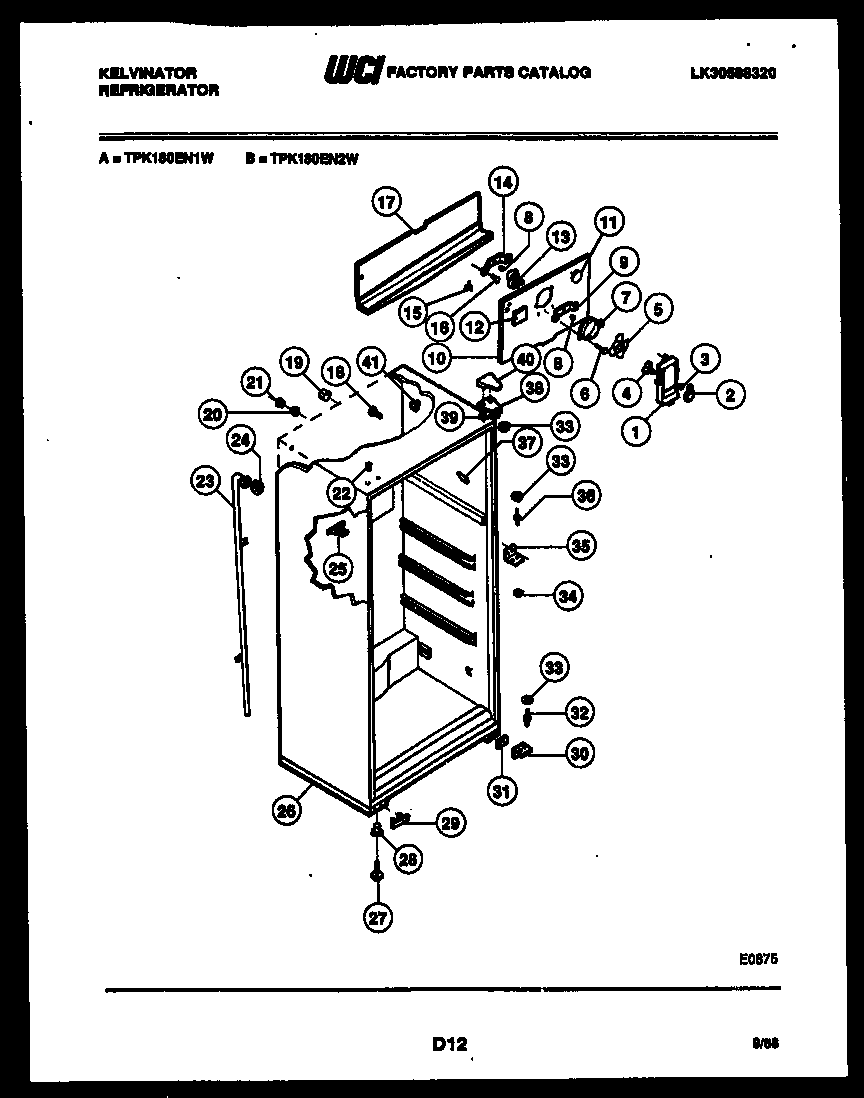

TPK180EN2V 03 – CABINET PARTS

Products

Position	Product
*48476	BUTTON, LINER
*48476	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1	WCI 3015421
2	KNOB-DAMPER CONTROL
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	5304455650 Frigidaire Refrigerator Screw
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10	WCI G177529
10A	NUT, ORIFICE (2)
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	BUTTON DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
16	5304455651 Frigidaire Refrigerator Screw
17	WCI G177534
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-08
23	TUBE, DRAIN
24	RING, SEAL (NON-ILLUSTRATED)
25	SPOUT DRAIN TUBE
25A	PIN PUSH SPOUT (2)
26	WCI G490004-02
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	BRACKET-HINGE
31A	TAPPING, PLATE (2)
31	SHIM, HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35B	WASHER (2)
35	BRACKET, HINGE CENTER
35A	SCREW, BRACKET MOUNTING (4)
36	WCI G142220
37	TRIM CORNER (4), AVOCADO
38	BRACKET, TOP HINGE
38A	241710601 Frigidaire Refrigerator Screw
39	WCI G183861
40	COVER, TOP HINGE, AVOCADO
41	5304509705 Frigidaire Refrigerator Grommet
