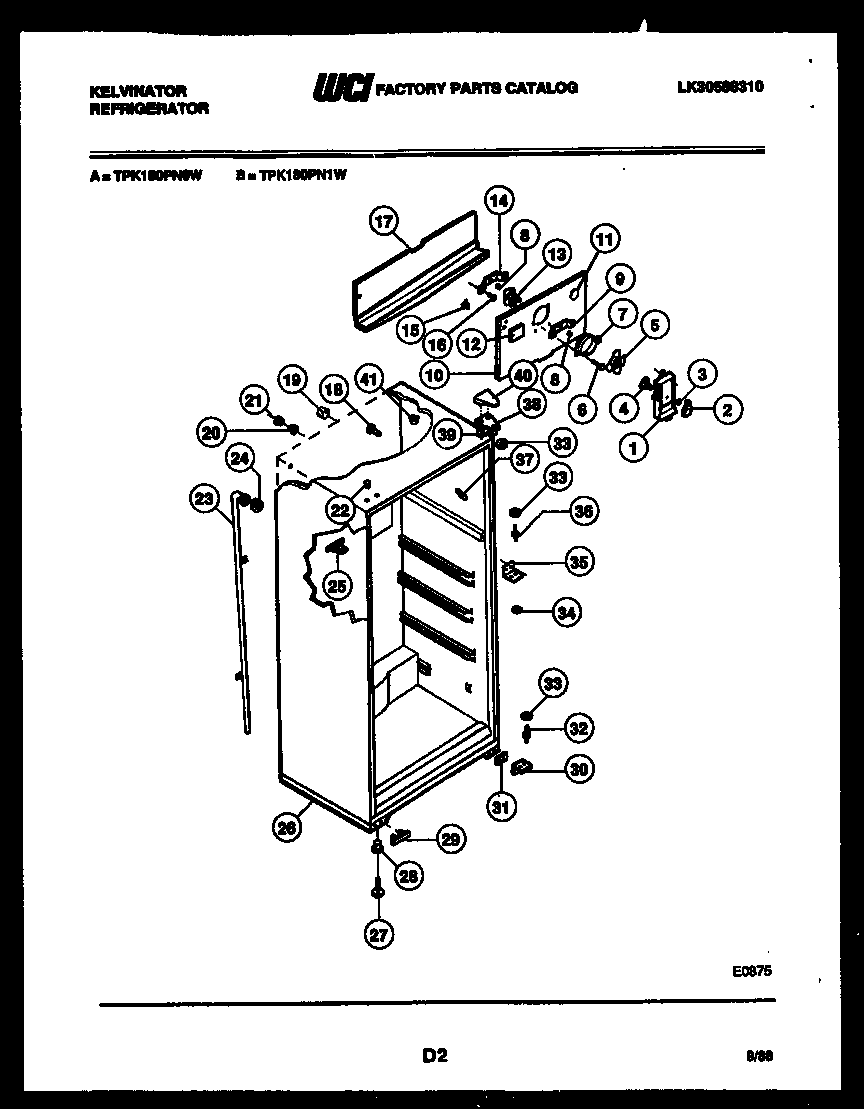

TPK180PN1F 03 – CABINET PARTS

Products

Position	Product
*47758	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*47758	BUTTON, LINER
1	WCI 3015421
2	KNOB-DAMPER CONTROL
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	5304455650 Frigidaire Refrigerator Screw
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10A	NUT, ORIFICE (2)
10	WCI G177529
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	BUTTON DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
16	5304455651 Frigidaire Refrigerator Screw
17	WCI G177534
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-10
23	TUBE, DRAIN
24	RING, SEAL (NON-ILLUSTRATED)
25	SPOUT DRAIN TUBE
25A	PIN PUSH SPOUT (2)
26	WCI G490004-02
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	BRACKET-HINGE
31A	TAPPING, PLATE (2)
31	SHIM, HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35A	SCREW, BRACKET MOUNTING (4)
35B	WASHER (2)
35	BRACKET, HINGE CENTER
36	WCI G142220
37	WCI G179684-10
38A	241710601 Frigidaire Refrigerator Screw
38	BRACKET, TOP HINGE
39	WCI G183861
40	COVER HINGE, COFFEE
41	5304509705 Frigidaire Refrigerator Grommet
