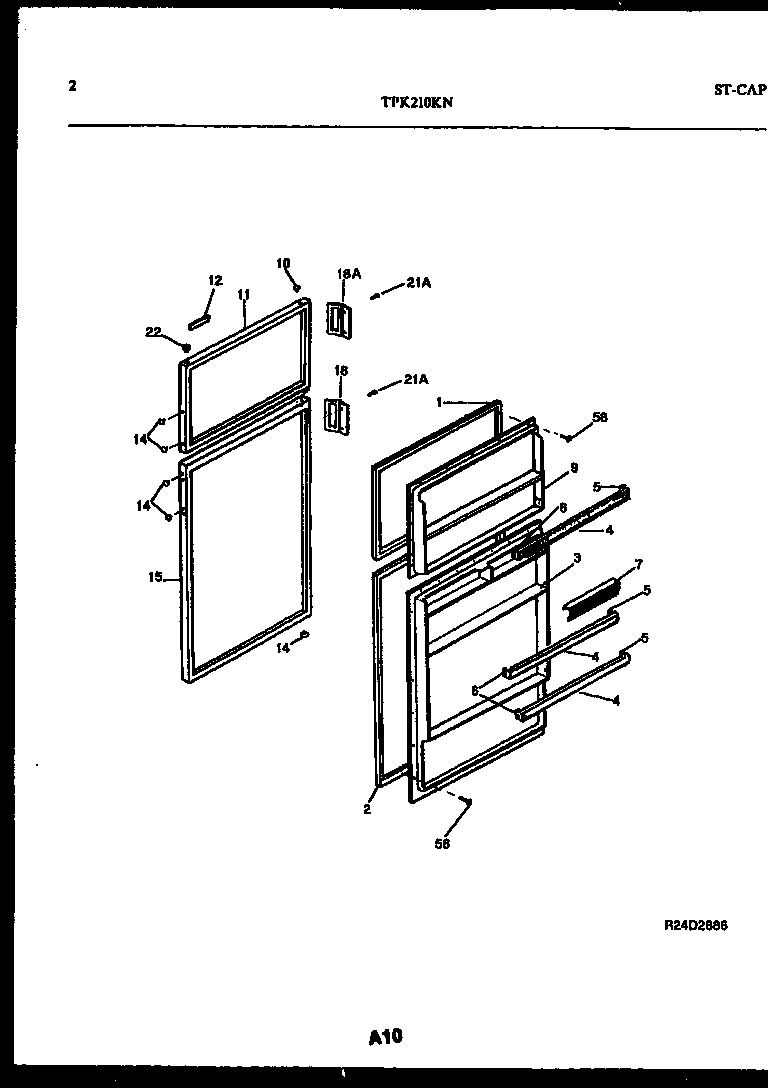

TPK210KN0D 02 – DOOR PARTS

TPK210KN0D 02 – DOOR PARTS

Written by

in

TPK210KN0D 02 – DOOR PARTS

Products

PositionProduct
*27484INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR
2GASKET-REFRIG DOOR
3WCI 5318540901
4RACK-DOOR
5SUPPORT-DOOR RACK, RH
6SUPPORT-DOOR RACK, LH
7WCI 5303289934
9WCI 5318540801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND
12WCI 5303273164
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND
18AWCI 5303273082
18WCI 5303273080
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
