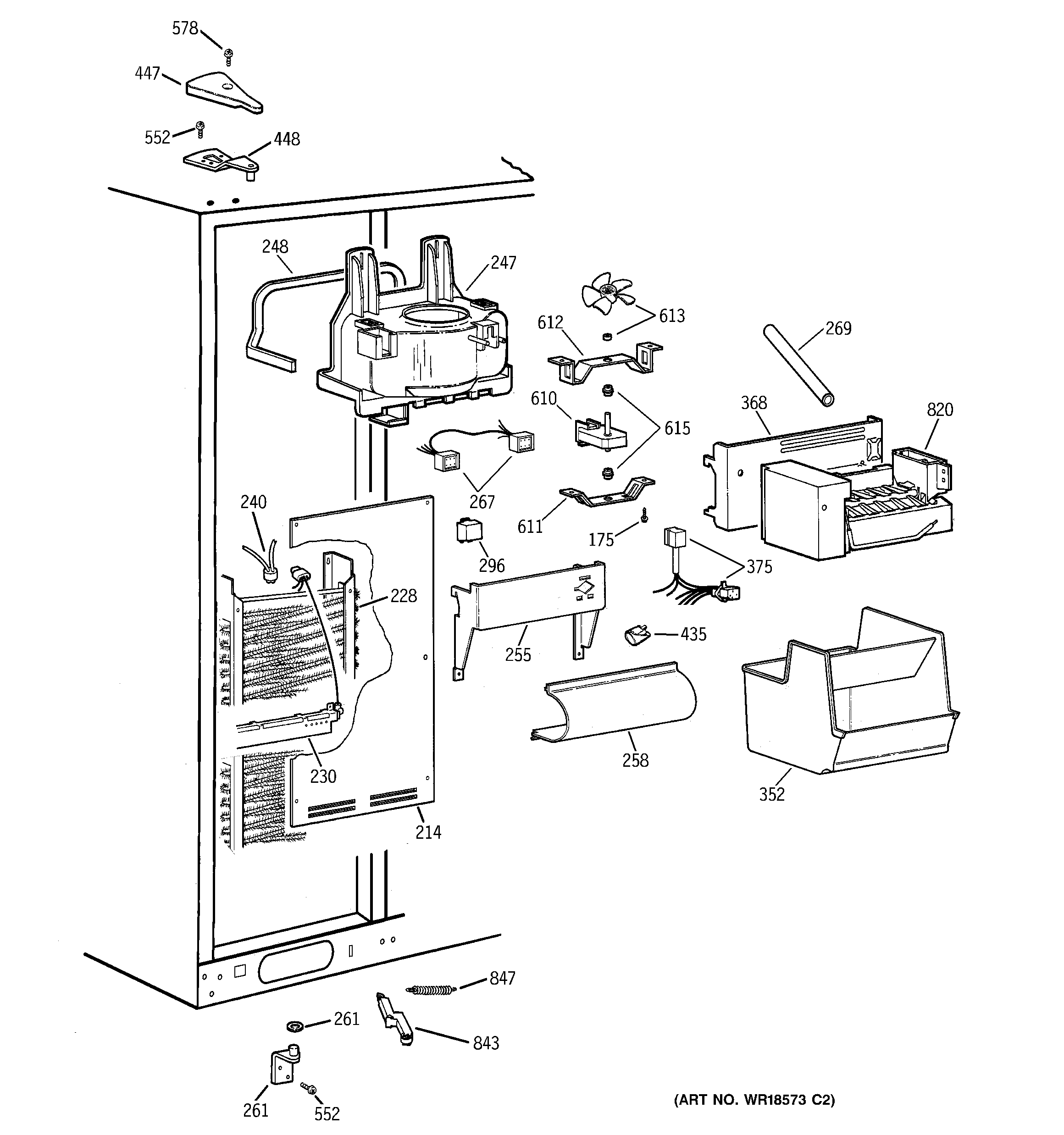

TPS24BIDABS FREEZER SECTION

TPS24BIDABS FREEZER SECTION

Written by

in

TPS24BIDABS FREEZER SECTION

Products

PositionProduct
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
175SCR 8-18 AB IHW 5/8 S
214GEN WR17X10217
228GEN WR85X0306
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
230WR51X10029 GE Defrost Heater Harness
240WR50X122 GE Refrigerator Defrost Bi-metal Thermostat
247GEN WR17X10429
248GEN WR14X0272
255GEN WR17X10388
258GEN WR17X4227
261GEN WR13X0759
261GEN WR01X2033
267GEN WR23X10072
269GEN WR02X7927
296GEN WR02X10018
352GEN WR30X0323
368GEN WR02X10011
375GEN WR23X0472
435WR2X9391 GE Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
435GEN WR02X8202
447COVER HINGE RH BK
447GEN WR02X9436
448GEN WR13X10035
448GEN WR13X10034
552WR01X10631 GE Screw
578WZ2X464D GE Screw
610GEN WR60X10009
611BRACKET COND. FAN
612GEN WR02X10112
613GEN WR60X10011
613WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615GROMMET EVAP
820WR30X10093 GE Refrigerator Ice Maker
843GEN WR11X0173
847WR1X2027 GE Refrigerator Spring Closure
