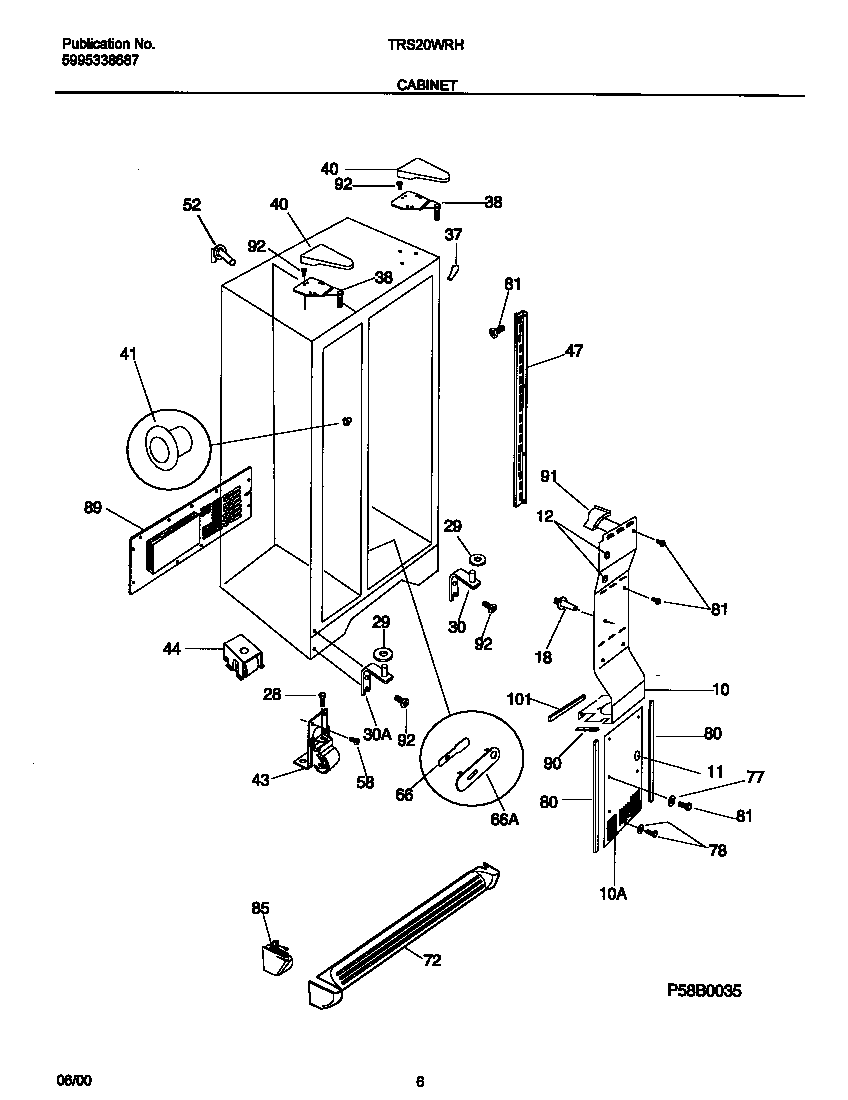

TRS20WRHW4 04 – CABINET

TRS20WRHW4 04 – CABINET

Written by

in

TRS20WRHW4 04 – CABINET

Products

PositionProduct
*46895WCI 5303322647
*46889WCI 215598900
*46891WCI 218979701
*46890WCI 218871201
*46896WCI 218902101
*46893SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*46894WCI 218154003
*46888SUPPORT-AIR DUCT CVR,1.83“ LONG
*46887NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*46899PLUG, BUTTON, CABINET LINER (NI)
*468975303321319 Frigidaire Refrigerator White Touch Up Paint
*468925304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 218748901
10WCI 218751301
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BWCI 218979601
30AWCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321081
38AWCI 218215241
38BWCI 218215243
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359613
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922701
89WCI 5303288947
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
101BWCI 218663103
101AWCI 215305701
