TRS20WRHW5 04 – CABINET

TRS20WRHW5 04 – CABINET

Written by

in

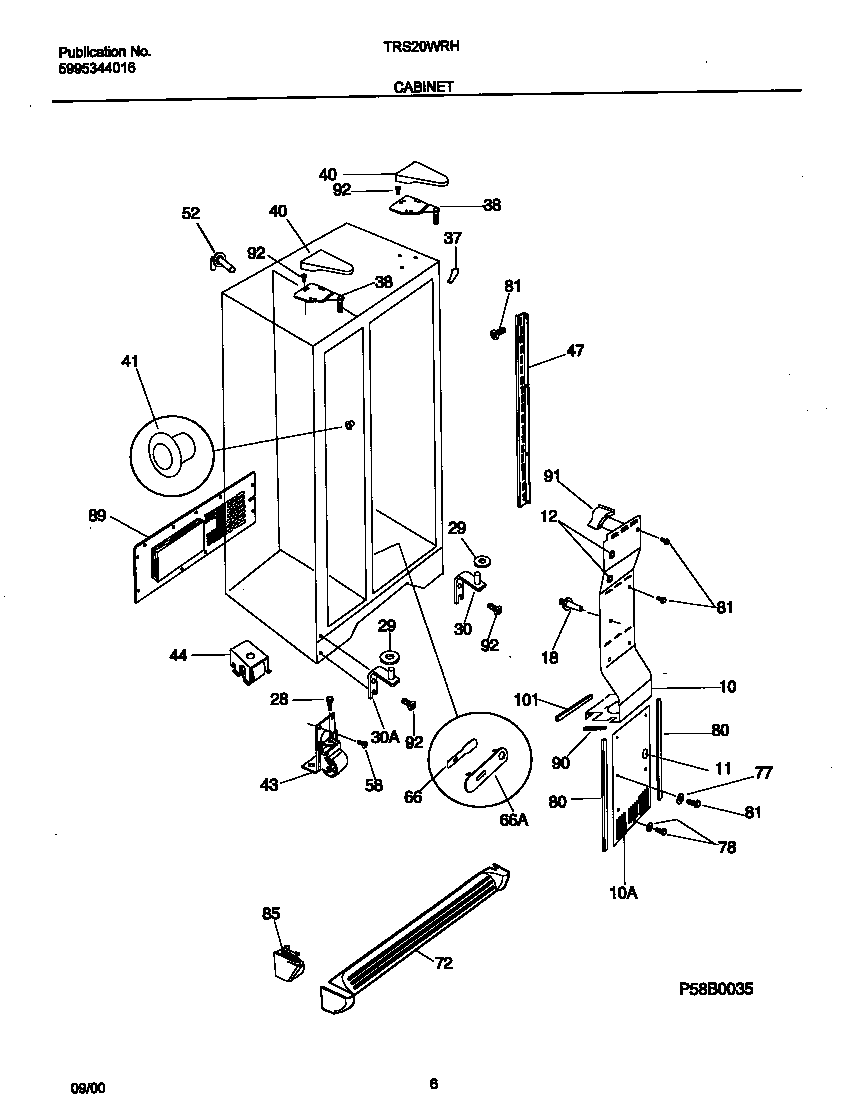

TRS20WRHW5 04 – CABINET

Products

PositionProduct
*98854WCI 5303322647
*98855WCI 218902101
*98851WCI 218979701
*98850WCI 218871201
*98849WCI 215598900
*98848SUPPORT-AIR DUCT CVR,1.83“ LONG
*98847NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*98858PLUG, BUTTON, CABINET LINER (NI)
*988525304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*98853WCI 218154003
*988565303321319 Frigidaire Refrigerator White Touch Up Paint
10WCI 218748901
10WCI 218751303
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30AWCI 218993901
30BWCI 218979601
30WCI 218993701
37WCI 5303321081
38BWCI 218215243
38AWCI 218215241
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
72WCI 218359613
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922701
89WCI 5303288947
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
101WCI 218663103
