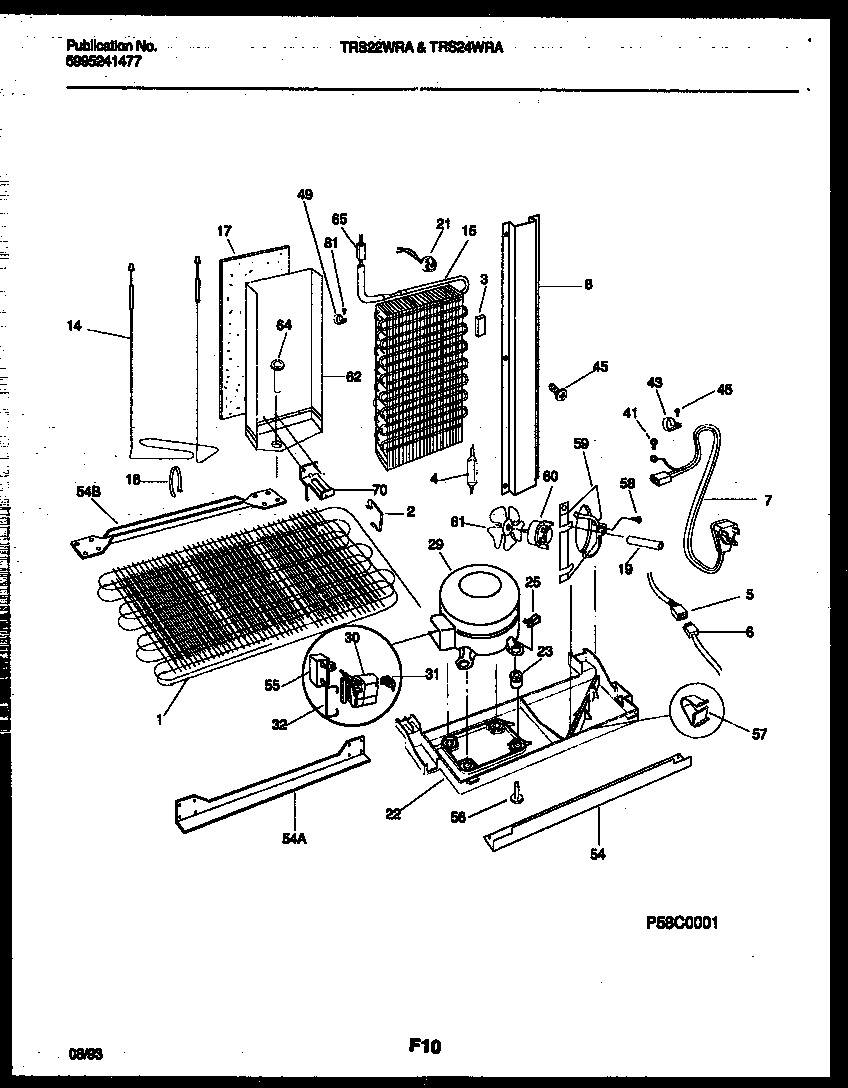

TRS22WRAD0 09 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 5303289487
1	SPACER TUBE
1	SPACER-COND TUBE,BLACK
2	WCI 5303289029
3	WCI 215226501
3	BLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 215458900
5	HARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
5	HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
6	WCI 215501700
7	WCI 215459201
8	WCI 5303289033
14	WCI 5303289520
15	TUBE-INLET (NOT ILLUSTRATED)
15	EVAPORATOR, W/HEAT EXCHANGR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5303289496
19	TUBE-RUBBER
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5303289030
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 215014200
29	WCI 5303917193
30	WCI 216008900
31	5303271616 Frigidaire Refrigerator P1-Overload
32	WCI 215012000
41	5308000039 Frigidaire Refrigerator Screw
43	5308000133 Frigidaire Refrigerator Clamp
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455852 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
49	WCI 215506900
54	WCI 5303289292
54	WCI 215732700
54	WCI 5303289311
54	WCI 5303289027
55	5304464438 Frigidaire Compressor Run Capacitor
56	WCI 215014100
57	WCI 215073800
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 5303289031
60	WCI 215501800
61	GROMMET, SILENCER (NOT ILLUSTRATED)
61	WCI 5303289032
61	WCI 215004700
62	WCI 215048700
64	241957901 Frigidaire Refrigerator Tube-Drain
65	WCI 5303289301
70	WCI 5303289041
81	5304455650 Frigidaire Refrigerator Screw
88349	WCI 5303917166
