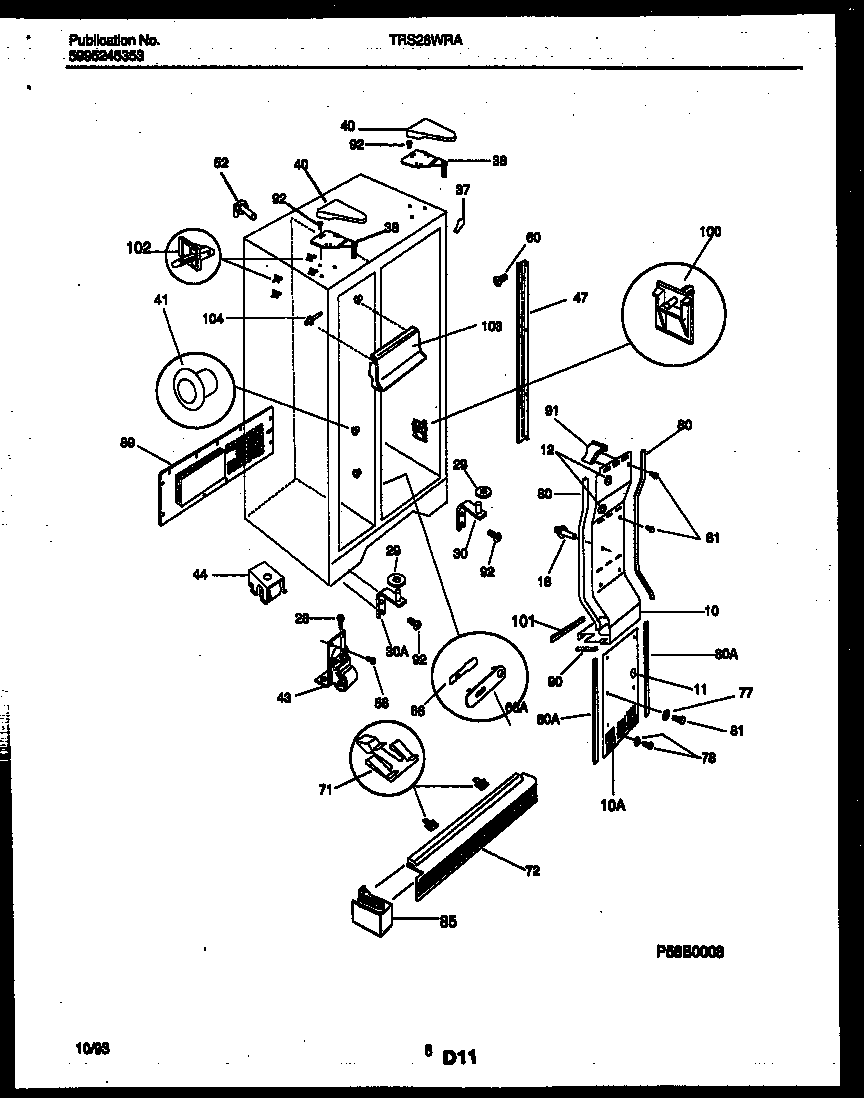

TRS26WRAW0 04 – CABINET PARTS

Products

Position	Product
10	WCI 5303297838
10A	WCI 5303289494
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
18	SUPPORT-AIR DUCT CVR,1.83`` LONG
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215598900
29	WCI 215003200
30	WCI 215008900
30	WCI 215009100
30	TAPPING PLATE, LH (NOT ILLUSTRATED)
30	TAPPING PLATE, RH (NOT ILLUSTRATED)
37	TRIM-CABINET CORNER, WHITE
38	WCI 215595701
40	WCI 5303288945
41	5304509705 Frigidaire Refrigerator Grommet
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43	WCI 5303289059
44	WCI 215163900
47	WCI 5303288974
52	WCI 5303289294
60	5304455852 Frigidaire Refrigerator Screw
66A	WCI 215050101
66	WCI 215050201
71	WCI 215003300
71	SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72	WCI 5303295757
77	WASHER-NYLON,3/16 X 5/8 OD
78	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
80A	WCI 5303289036
80	WCI 5303289037
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 215003802
89	WCI 215176300
89	5304455651 Frigidaire Refrigerator Screw
90	WCI 215022602
91	WCI 215177600
92	241710601 Frigidaire Refrigerator Screw
100	SUPPORT-PAN COVER
101	WCI 215305702
102	SUPPORT, MOTOR BRKT, & SHELF
103	WCI 215413100
104	SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104	SUPPORT-ICE ACCESS DR
