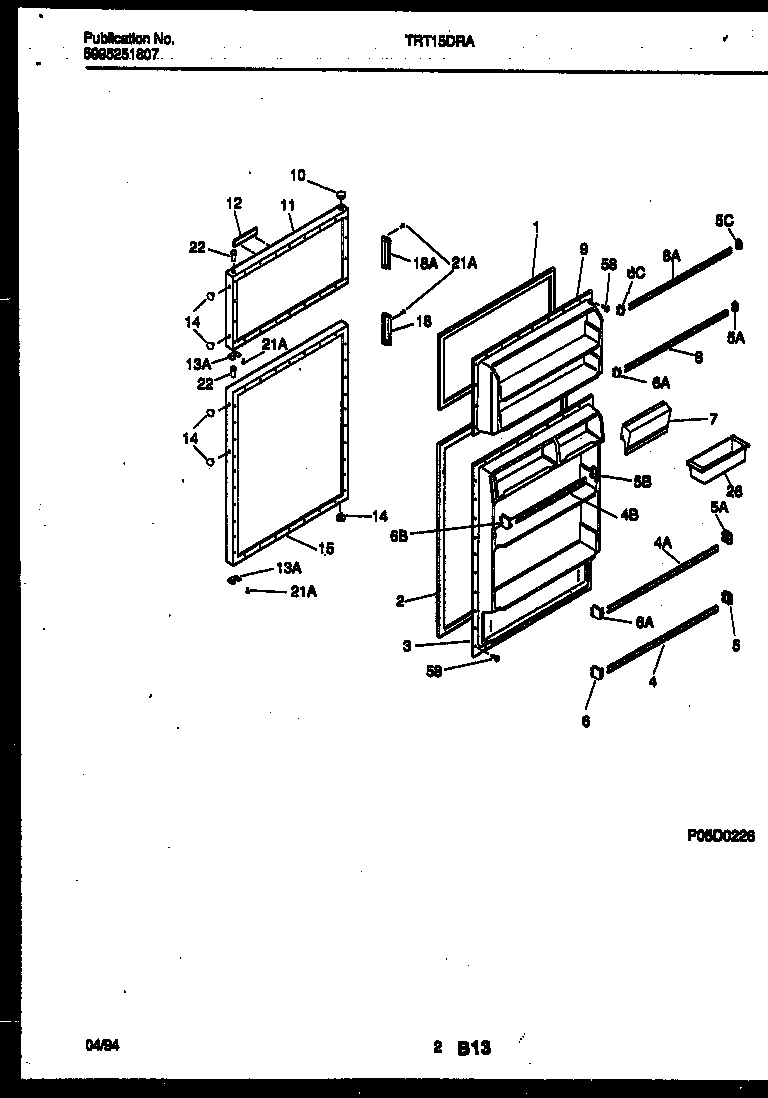

TRT15DRAD0 02 – DOOR PARTSadmin2025-04-26T09:44:29+00:00TRT15DRAD0 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *99110 | INSULATION |
| 1 | GASKET-FRZR DOOR, MAGNETIC, WHITE |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 5303284098 |
| 4B | WCI 5303300047 |
| 4A | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 5B | SUPPORT-DOOR RACK, EXTENDS .56``, RH |
| 5A | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 5C | 3206165 Frigidaire Bar Endcap Right Hand |
| 5 | WCI 3206150 |
| 6A | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 6B | SUPPORT-DOOR RACK, EXTENDS .56``, LH |
| 6C | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 6 | WCI 3206151 |
| 7 | WCI 5303300053 |
| 8A | WCI 5303300046 |
| 9 | WCI 5303276517 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | FREEZER DOOR-ALMD |
| 12A | WCI 215220318 |
| 12B | WCI 215366311 |
| 12 | WCI 215754311 |
| 12C | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 13A | WCI 5308000255 |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | REFRIGERATOR DOOR-ALMD |
| 18A | WCI 5303273082 |
| 18 | WCI 5303273080 |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 26 | WCI 3204522 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
