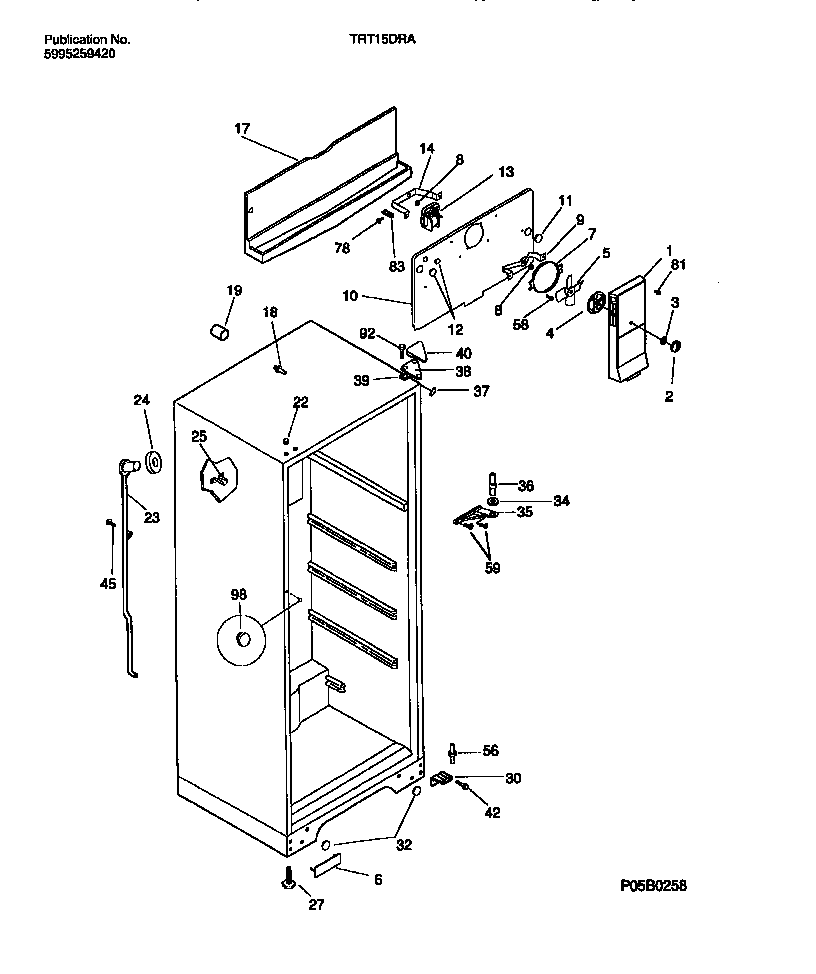

TRT15DRAD1 03 – CABINET W/FAN ASSY

TRT15DRAD1 03 – CABINET W/FAN ASSY

Written by

in

TRT15DRAD1 03 – CABINET W/FAN ASSY

Products

PositionProduct
*47081SKID PAD, REAR CAB BASE (NI)
*47083TOUCH, UP PAINT, ALMOND (NI)
*47082PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303300050
2WCI 5303299978
3Nut,push-on
4WCI 3206110
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 215846500
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206119
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079000
12AWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 3206146
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
27SCREW-LEVELING, (2)
30WCI 3206136
30ATAPPING PLATE, LOWER HINGE, (2) (NI)
30BSHIM, LOWER HINGE (NI)
32WCI 215217702
34WCI 5308000186
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, ALMOND
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206105
42241710601 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59WCI 2181888000
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
