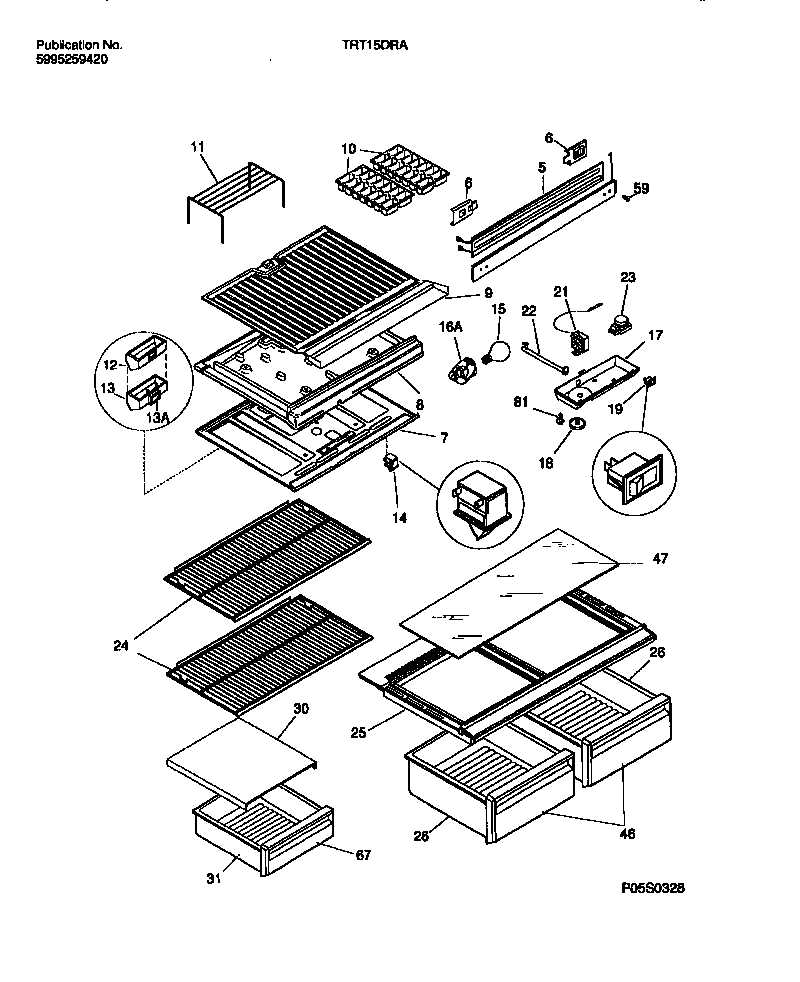

TRT15DRAD1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

TRT15DRAD1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

TRT15DRAD1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218430711
5WCI 218271401
6WCI 218279800
7AWCI 5303001380
7WCI 3206128
8WCI 3206131
8A3205266 Frigidaire Refrigerator Edge Protector
8BHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
9WCI 3206132
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, “TABLE TYPE“
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 3206130
17ANUT, ANCHOR (NI)
18WCI 5303299979
19WCI 5303266905
21AWCI 5303001260
21WCI 5303302297
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25COVER-CRISPER PAN, WITH BEAM, LESS INSERT
26PAN-CRISPER
30WCI 5303285319
31WCI 3206209
46WCI 5303300049
47WCI 5303277005
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67WCI 5303300048
815304455650 Frigidaire Refrigerator Screw
